RightMark Audio Analyzer test report
| Testing device | NI Audio Kontrol 1 |
| Sampling mode | 24-bit, 44 kHz |
| Interface | |
| Testing chain | Audio Kontrol 1 line-out - E-MU1616M line-in |
| RMAA Version | 6.0.6 PRO |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | 0.0 dB / -0.0 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/inverted |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.04, -0.37 |
Good |
| Noise level, dB (A) | -103.8 |
Excellent |
| Dynamic range, dB (A) | 104.0 |
Excellent |
| THD, % | 0.0078 |
Very good |
| THD + Noise, dB (A) | -79.6 |
Average |
| IMD + Noise, % | 0.0099 |
Very good |
| Stereo crosstalk, dB | -85.0 |
Very good |
| IMD at 10 kHz, % | 0.036 |
Good |
| General performance | Very good |
Frequency response
| From 20 Hz to 20 kHz, dB | -0.67, +0.04 |
| From 40 Hz to 15 kHz, dB | -0.37, +0.04 |
Noise level
Left |
Right |
|
| RMS power, dB | -102.3 |
-102.3 |
| RMS power (A-weighted), dB | -103.7 |
-103.9 |
| Peak level, dB FS | -87.9 |
-87.9 |
| DC offset, % | -0.0 |
-0.0 |
Dynamic range
Left |
Right |
|
| Dynamic range, dB | +102.7 |
+102.8 |
| Dynamic range (A-weighted), dB | +104.0 |
+104.1 |
| DC offset, % | -0.00 |
-0.00 |
THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0077 |
+0.0079 |
| THD + Noise, % | +0.0079 |
+0.0081 |
| THD + Noise (A-weighted), % | +0.0104 |
+0.0106 |
Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0095 |
+0.0103 |
| IMD + Noise (A-weighted), % | +0.0079 |
+0.0089 |

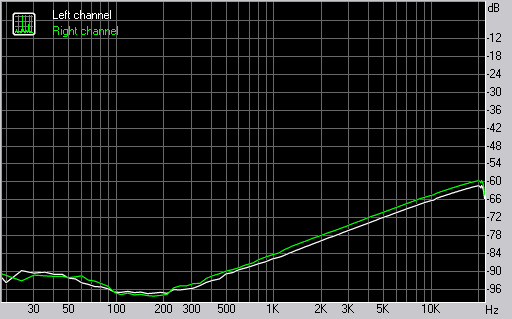

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -96 |
-96 |
| Crosstalk at 1000 Hz, dB | -85 |
-83 |
| Crosstalk at 10000 Hz, dB | -65 |
-64 |
IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0226 |
0.0272 |
| IMD + Noise at 10000 Hz, | 0.0311 |
0.0352 |
| IMD + Noise at 15000 Hz, | 0.0466 |
0.0526 |
