M-Audio Revolution5.1 Loop

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 32-bit, 44 kHz
Polarity: inverted/inverted




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.05, -0.05Excellent
Noise level, dB (A): -101.9Excellent
Dynamic range, dB (A): 101.9Excellent
THD, %: 0.0015Excellent
IMD + Noise, %: 0.0030Excellent
Stereo crosstalk, dB: -101.4Excellent
IMD at 10 kHz, %: 0.0031Excellent

General performance: Excellent




Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.10, +0.05
From 40 Hz to 15 kHz, dB-0.05, +0.05




Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-98.4-98.6
RMS power (A-weighted), dB:-101.9-102.0
Peak level, dB FS:-82.4-83.0
DC offset, %:0.000.00




Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+99.4+99.4
Dynamic range (A-weighted), dB:+101.9+101.9
DC offset, %:0.000.00




THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.00150.0014
THD + Noise, %:0.00260.0027
THD + Noise (A-weighted), %:0.00250.0025




Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.00300.0030
IMD + Noise (A-weighted), %:0.00220.0022




Stereo crosstalk

Spectrum graph


Parameter L -> R L <- R
Crosstalk at 100 Hz, dB:-100-98
Crosstalk at 1 kHz, dB:-100-101
Crosstalk at 10 kHz, dB:-90-89

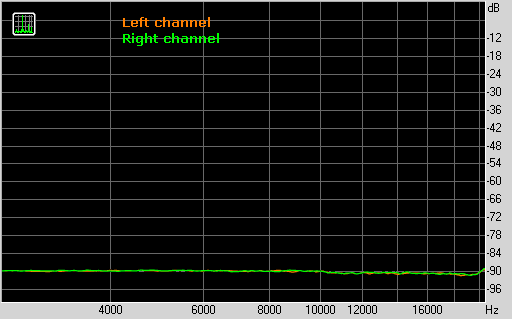

IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:0.00320.0033
IMD + Noise at 10 kHz, %:0.00320.0032
IMD + Noise at 15 kHz, %:0.00300.0029

This report was generated by RightMark Audio Analyzer 5.6
