RightMark Audio Analyzer test report

Testing device WASAPI Sound Blaster X-Fi HD
Sampling mode 24-bit, 48 kHz
Interface
Testing chain External loopback (line-out - line-in)
RMAA Version 6.3.0 PRO


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -0.3 dB / -0.3 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.03, -0.08
Excellent
Noise level, dB (A)
-108.3
Excellent
Dynamic range, dB (A)
108.2
Excellent
THD, %
0.0031
Very good
THD + Noise, dB (A)
-87.5
Good
IMD + Noise, %
0.0037
Excellent
Stereo crosstalk, dB
-100.6
Excellent
IMD at 10 kHz, %
0.0057
Excellent
General performance

Excellent



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.25, +0.03
-0.25, +0.01
From 40 Hz to 15 kHz, dB
-0.08, +0.03
-0.09, +0.01



Noise level

Spectrum graph


Left
Right
RMS power, dB
-105.3
-108.2
RMS power (A-weighted), dB
-106.7
-109.9
Peak level, dB FS
-83.3
-84.3
DC offset, %
-0.0
-0.0

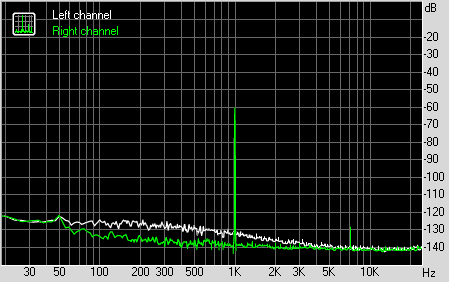

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+105.2
+108.7
Dynamic range (A-weighted), dB
+106.5
+109.8
DC offset, %
+0.00
+0.00

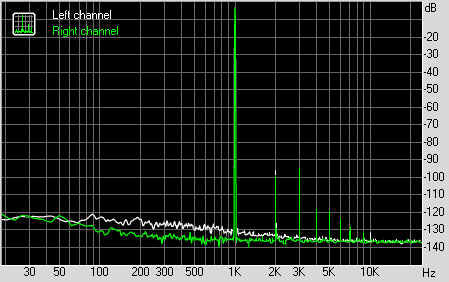

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0033
+0.0029
THD + Noise, %
+0.0035
+0.0031
THD + Noise (A-weighted), %
+0.0045
+0.0040



Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0039
+0.0035
IMD + Noise (A-weighted), %
+0.0030
+0.0028



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-98
-97
Crosstalk at 1000 Hz, dB
-100
-99
Crosstalk at 10000 Hz, dB
-85
-86



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0069
0.0068
IMD + Noise at 10000 Hz,
0.0046
0.0044
IMD + Noise at 15000 Hz,
0.0060
0.0057
