RightMark Audio Analyzer test report

Testing device ASUS U7 -> E-MU 1616M
Sampling mode 24-bit, 96 kHz
Interface ASIO
Testing chain External loopback (line-out - line-in)
RMAA Version 6.3.0 PRO


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -5.4 dB / -5.4 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.04, -0.16
Very good
Noise level, dB (A)
-110.8
Excellent
Dynamic range, dB (A)
111.3
Excellent
THD, %
0.0005
Excellent
THD + Noise, dB (A)
-101.6
Excellent
IMD + Noise, %
0.0012
Excellent
Stereo crosstalk, dB
-103.7
Excellent
IMD at 10 kHz, %
0.0028
Excellent
General performance

Very good



Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.29, +0.10
-0.25, +0.12
From 40 Hz to 15 kHz, dB
-0.16, +0.04
-0.12, +0.07



Noise level

Spectrum graph


Left
Right
RMS power, dB
-105.6
-106.1
RMS power (A-weighted), dB
-110.7
-110.9
Peak level, dB FS
-67.2
-67.3
DC offset, %
+0.0
+0.0



Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+109.2
+110.1
Dynamic range (A-weighted), dB
+111.2
+111.3
DC offset, %
-0.00
-0.00

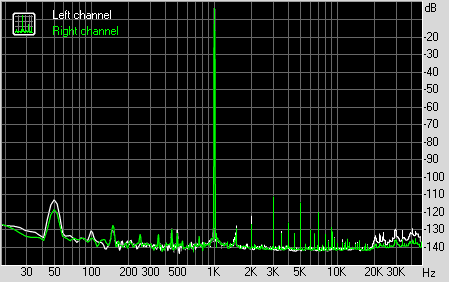

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0004
+0.0005
THD + Noise, %
+0.0008
+0.0008
THD + Noise (A-weighted), %
+0.0008
+0.0009

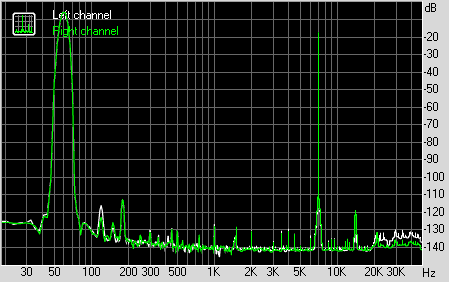

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0012
+0.0012
IMD + Noise (A-weighted), %
+0.0010
+0.0010



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-104
-100
Crosstalk at 1000 Hz, dB
-105
-100
Crosstalk at 10000 Hz, dB
-106
-86



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0028
0.0032
IMD + Noise at 10000 Hz,
0.0018
0.0020
IMD + Noise at 15000 Hz,
0.0032
0.0036
