RightMark Audio Analyzer test report
| Testing device | X-Fi Elite Pro |
| Sampling mode | 24-bit, 44 kHz |
| Interface | MME |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.0.6 PRO |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.1 dB / -0.1 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.02, -0.07 |
Excellent |
| Noise level, dB (A) | -114.4 |
Excellent |
| Dynamic range, dB (A) | 114.0 |
Excellent |
| THD, % | 0.0006 |
Excellent |
| THD + Noise, dB (A) | -101.4 |
Excellent |
| IMD + Noise, % | 0.0009 |
Excellent |
| Stereo crosstalk, dB | -103.7 |
Excellent |
| IMD at 10 kHz, % | 0.0008 |
Excellent |
| General performance | Excellent |
Frequency response
| From 20 Hz to 20 kHz, dB | -0.19, +0.02 |
| From 40 Hz to 15 kHz, dB | -0.07, +0.02 |

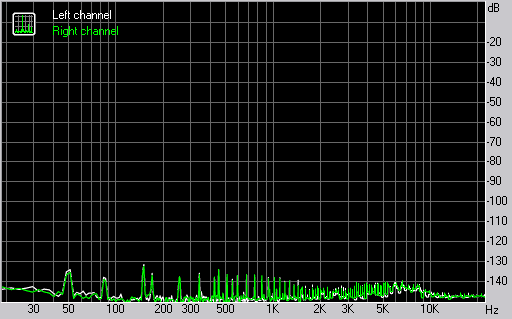

Noise level
Left |
Right |
|
| RMS power, dB | -113.5 |
-113.5 |
| RMS power (A-weighted), dB | -114.4 |
-114.4 |
| Peak level, dB FS | -92.1 |
-92.0 |
| DC offset, % | -0.0 |
-0.0 |
Dynamic range
Left |
Right |
|
| Dynamic range, dB | +113.2 |
+113.3 |
| Dynamic range (A-weighted), dB | +113.9 |
+114.1 |
| DC offset, % | -0.00 |
-0.00 |

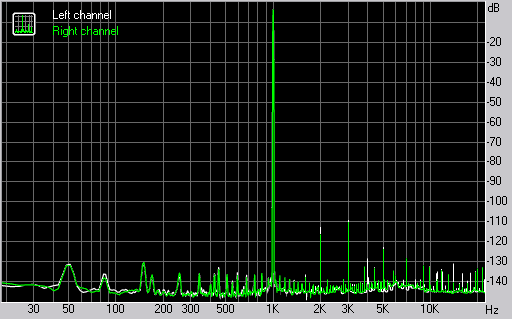

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0006 |
+0.0005 |
| THD + Noise, % | +0.0008 |
+0.0007 |
| THD + Noise (A-weighted), % | +0.0009 |
+0.0008 |

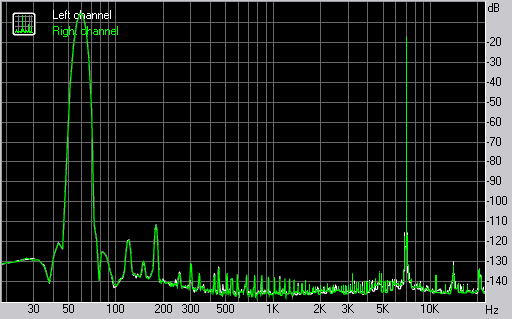

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0009 |
+0.0009 |
| IMD + Noise (A-weighted), % | +0.0007 |
+0.0006 |

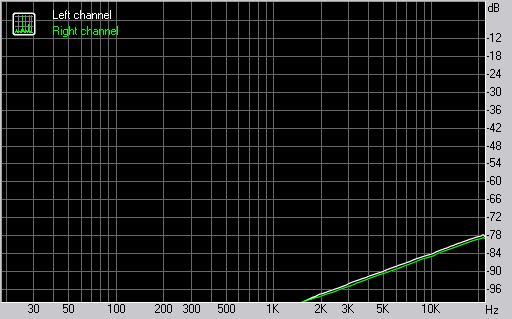

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -116 |
-116 |
| Crosstalk at 1000 Hz, dB | -103 |
-103 |
| Crosstalk at 10000 Hz, dB | -83 |
-84 |

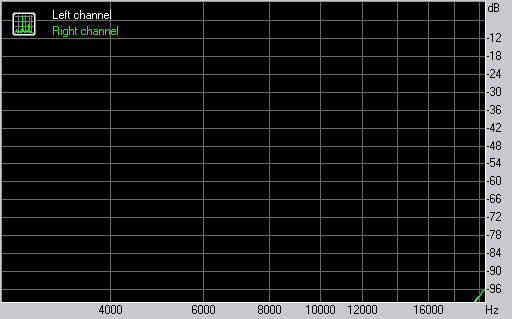

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0009 |
0.0008 |
| IMD + Noise at 10000 Hz, | 0.0008 |
0.0007 |
| IMD + Noise at 15000 Hz, | 0.0008 |
0.0007 |
