RightMark Audio Analyzer test report
| Testing device | ASUS Xonar D2 Audio |
| Sampling mode | 24-bit, 48 kHz |
| Interface | DirectSound |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.0.6 PRO |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.5 dB / -0.4 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.05, -0.04 |
Excellent |
| Noise level, dB (A) | -116.7 |
Excellent |
| Dynamic range, dB (A) | 116.5 |
Excellent |
| THD, % | 0.0003 |
Excellent |
| THD + Noise, dB (A) | -104.0 |
Excellent |
| IMD + Noise, % | 0.0008 |
Excellent |
| Stereo crosstalk, dB | -97.3 |
Excellent |
| IMD at 10 kHz, % | 0.0005 |
Excellent |
| General performance | Excellent |
Frequency response
| From 20 Hz to 20 kHz, dB | -0.11, +0.05 |
| From 40 Hz to 15 kHz, dB | -0.04, +0.05 |
Noise level
Left |
Right |
|
| RMS power, dB | -115.5 |
-115.3 |
| RMS power (A-weighted), dB | -116.7 |
-116.6 |
| Peak level, dB FS | -93.1 |
-92.7 |
| DC offset, % | -0.0 |
-0.0 |
Dynamic range
Left |
Right |
|
| Dynamic range, dB | +115.3 |
+115.3 |
| Dynamic range (A-weighted), dB | +116.5 |
+116.5 |
| DC offset, % | -0.00 |
-0.00 |

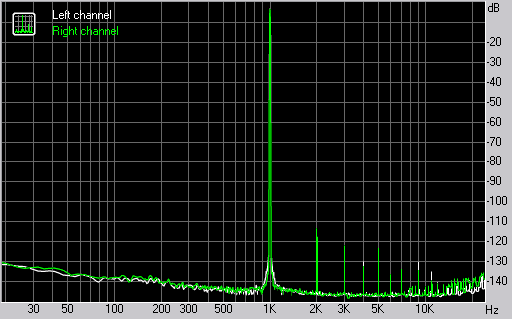

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0002 |
+0.0003 |
| THD + Noise, % | +0.0005 |
+0.0006 |
| THD + Noise (A-weighted), % | +0.0006 |
+0.0007 |

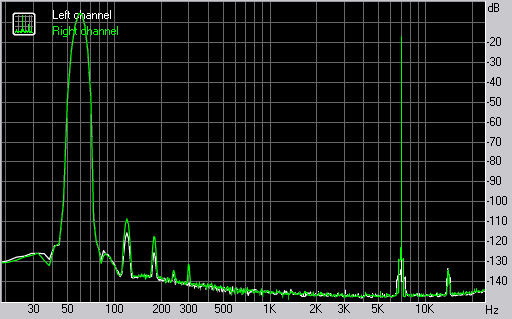

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0008 |
+0.0009 |
| IMD + Noise (A-weighted), % | +0.0004 |
+0.0005 |
Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -106 |
-108 |
| Crosstalk at 1000 Hz, dB | -96 |
-96 |
| Crosstalk at 10000 Hz, dB | -77 |
-77 |
IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0006 |
0.0005 |
| IMD + Noise at 10000 Hz, | 0.0005 |
0.0005 |
| IMD + Noise at 15000 Hz, | 0.0005 |
0.0006 |
