    DFI — материнская забота о Ваших комплектующих


    Компания DFI Inc. основанная в 1981 году, всемирный лидер в разработке и производстве материнских плат и прикладных компьютерных платформ (ACP). Головной офис компании расположен в городе Хси-Чих, Тайвань.

    Позиции компании на мировом рынке

    Начав с нуля, наша компания за двадцать лет превратилась в одного из лидеров на рынке ИТ. Производство компании расположено на Тайване и в Китае. Помимо головного офиса на Тайване, DFI в настоящее время имеет региональные отделения в США, Голландии, Китае и Японии. Официально, компания DFI присутствует на Российском рынке с 2000 года. В настоящее время официальными дистрибьюторами DFI в России являются компании OLDI и Trinity Electronics.

    Качество продукции — краеугольный камень политики DFI

    Конструкторская лаборатория DFI получила признание ведущих производителей процессоров и чипсетов. Разрабатывая новые продукты, наши специалисты всегда уделяют основное внимание обеспечению их безупречной стабильности и качества, а также их будущей конкурентоспособности на рынке. Стремясь приспособиться к постоянно меняющимся условиям, DFI полностью автоматизировала весь производственный цикл. В результате компания превосходит своих конкурентов на всех стадиях производства: начиная с поставки сырья, хранения комплектующих, процесса сборки и тестирования готовой продукции, заканчивая упаковкой и доставкой товара покупателю. Мы гордимся тем, что у нас самый низкий процент возврата товаров среди конкурентов. Тотальный контроль всего производственного процесса и выборочная проверка готовой продукции, естественно, удлиняют производственный цикл, но эта потеря во времени полностью оправдывается итоговым результатом. Ведь имя DFI уже стало синонимом надежности. DFI стала первым Тайваньским производителем на рынке ИТ, получившим сертификат качества ISO9001. Наша философия — стопроцентный контроль качества и постоянное самосовершенствование.

    Продукция DFI

    Стремясь удовлетворить всему спектру рыночного спроса, компания DFI представляет три линии коммерческих продуктов и направление ACP для индустриального применения.

    • LanParty — линия high-end для компьютерных энтузиастов и любителей компьютерных игр. Серия LanParty лидер в мире оверклокинга и модинга.

    • Infinity — линия высоко производительных материнских плат для платформ Intel и AMD, с богатыми функциональными возможностями. Фирменная технология CMOS Reloaded делает эти платы незаменимыми для оверклокеров.


    ACP — applied computer platforms, линия индустриальных решений для использования в специальных системах (POS, ATM, системах охраны, автоматизации, телефонии, медицинском оборудовании и игровых машинах).

    Партнеры DFI в России

    Официальные дистрибьюторы:


    LanParty

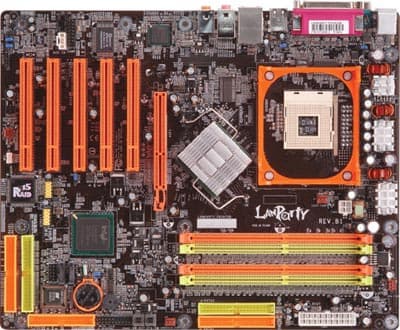

    LANPARTY PRO875B rev. B

    Материнская плата DFI LANPARTY PRO875B rev. B предназначена для сетевых геймеров и любителей компьютерного модинга.
    Особенность платы — эффектные светящиеся в ультрафиолетовом свете пластиковые слоты, две сетевые карты. Среди обширной комплектации можно отметить устройство для переноса ПК, выведенные на переднюю панель FrontX разъемы и индикаторы диагностики. У платы богатые функциональные возможности. Преимущество DFI LANPARTY PRO875B rev. B заключается в многообразии характеристик — RAID, встроенные кнопки питания и сброса, LED индикация, круглые IDE кабели, возможность разгона.

    Технические характеристики:

       Поддерживаемые процессоры:
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.2GHz+
      — Intel Hyper-Threading Technology
      — FSB: 533MHz and 800MHz
    • Intel® Celeron® processor — 400MHz system data bus
       Разъем процессора:
    • Socket 478
       Чипсет:
    • Intel® 875P chipset
      — Intel® 82875P Memory Controller Hub (MCH)
      — Intel® 82801ER I/O Controller Hub (ICH5)
       Разъемы памяти:
    • Supports dual channel (128-bit wide) memory interface
      — Each channel supports 2 DIMM sockets
    • Supports up to 4GB system memory
    • Supports Dynamic mode to optimize system performance
    • Supports ECC/non-ECC DIMMs
    • Supports unbuffered DIMMs
       BIOS
    • Award BIOS
    • Genie BIOS provides:
      — CPU/DRAM overclocking in 1MHz stepping
      — AGP/PCI/SATA overclocking
      — CPU/DIMM/AGP overvoltage
    • 4Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-Keyboard/Mouse
      – Wake-On-USB Keyboard
      – Wake-On-RING (external modem)
      – Wake-On-LAN
      – RTC timer to power-on the system
    • AC power failure recovery
       Аппаратный контроль:
    • Monitors CPU/system temperature and overheat alarm
    • Monitors CPU/1.5V/5VSB/VBAT/3.3V/5V/±12V voltages and failure alarm
    • Monitors CPU/chip/second fan speed and failure alarm
    • Automatic chip/second fans on/off control
    • Read back capability that displays temperature, voltage and fan speed
    • CPU Fan Protection function monitors the CPU fan during system boot-up
    • CPU Temperature Protection function monitors CPU temperature during system boot-up
       Звук:
    • 20-bit stereo full-duplex codec with independent variable sampling rate
    • S/PDIF-in/out interface
    • 6-channel audio output
       Сетевой адаптер:
    • Uses 82547EI Gigabit LAN CSA interface
    • Full duplex support at both 10, 100 and 1000 Mbps
       ATA RAID:
    • Uses HighPoint 372N RAID controller
    • RAID 0, 1, 0+1 and 1.5
       IDE-контроллер:
    • Supports ATA/33, ATA/66 and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
       ICH5R Serial ATA и RAID контроллер:
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1
       AGP:
    • Supports 1.5V AGP 8x (2.13GB/sec.) and AGP 4x (1066MB/sec.) for 3D graphics applications (AGP 2x and 3.3V AGP card are not supported)
    • Supports AGP 3.0 and AGP 2.0 spec.
       Порты ввода/вывода:
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 2 RCA jacks for S/PDIF-in and S/PDIF-out
    • 2 audio jacks for center/bass and rear out
    • 3 audio jacks: line-out, line-in and mic-in
       Разъемы ввода/вывода:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 connector for an external game/MIDI port
    • 2 internal audio connectors (CD-in and AUX-in)
    • 1 S/PDIF-in/out connector for optical cable connection
    • 1 connector for IrDA interface
    • 2 RAID IDE connectors
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 4 fan connectors for CPU fan, chassis fan, second fan and chip fan
    • 1 diagnostic LED connector for external 4 diagnostic LEDs display
    • EZ touch switches (power switch and reset switch)
       Слоты расширения:
    • 1 AGP slot
    • 5 PCI slots
       Совместимость:
    • PCI 2.2 and AC’97 compliant
    • Intel AGP version 3.0
       Форм-фактор, размеры:
    • 4 layers, ATX form factor
    • 30,5cm (12,05") × 24,4cm (9,6")

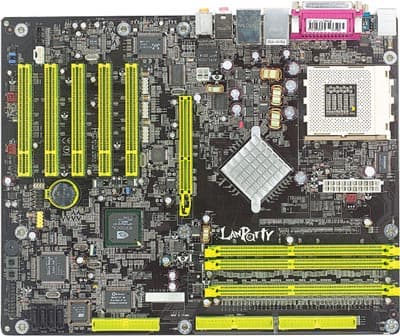

    LANPARTY NFII-Ultra B

    Материнская плата DFI LANPARTY NFII-Ultra B предназначена для сетевых геймеров и любителей компьютерного модинга.
    Особенность платы — эффектные светящиеся в ультрафиолете пластиковые слоты.
    Среди обширной комплектации можно отметить устройство для переноса ПК, круглые IDE кабели, выведенные на переднюю панель FrontX разъемы и индикаторы диагностики.
    У платы богатые функциональные возможности, среди которых: два LAN адаптера, контроллер SATA RAID с поддержкой RAID 0 и RAID 1, и 6-канальный звук, коаксиальные разъемы S/PDIF, контроллер FireWire, встроенные кнопки питания и сброса, LED индикация, возможность разгона.

    Технические характеристики:

       Поддерживаемые процессоры:
    • AMD Athlon XP 266/333/400MHz FSB
    • AMD Athlon 200/266MHz FSB
    • AMD Duron 200/266MHz FSB
       Разъем процессора:
    • Socket A
       Чипсет:
    • nVIDIA® nForce2 chipset
      — nForce2 Ultra 400
      — nForce2 MCP-T
       Разъемы памяти:
    • Supports dual channel memory interface
    • Supports up to 3GB memory (unbuffered DIMM)
    • Supports PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) and PC3200 (DDR400) DDR SDRAM DIMM, 2.5V type
    • Three 184-pin DDR SDRAM DIMM sockets
       BIOS
    • Award BIOS, Windows® 95/98/2000/ME/XP Plug and Play compatible
    • Genie BIOS provides:
      — CPU/DRAM/AGP overclocking
      — CPU/AGP/DRAM/Chipset overvoltage
    • 4Mbit flash memory
    • CMOS Reloaded
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      — Wake-On-PS/2 Keyboard/Mouse
      — Wake-On-USB
      — Wake-On-Ring (external modem)
      — Wake-On-LAN
      — RTC timer to power-on the system
    • AC power failure recovery
       Аппаратный контроль:
    • Monitors CPU/system temperature
    • Monitors ±12V/5V/3.3V/VBAT(V)/5VSB(V) voltages
    • Monitors CPU/chassis fan speed
    • Read back capability that displays temperature, voltage and fan speed
    • CPU Temperature Protection function monitors CPU temperature during system boot-up
       Звук:
    • Realtek ALC650
    • AC'97 2.2 S/PDIF extension compliant codec
    • Supports Microsoft® DirectSound/DirectSound 3D
    • AC’97 supported with full duplex, independent sample rate converter for audio recording and playback
    • S/PDIF-in/out interface
    • 6-channel audio output
       Сетевой адаптер:
    • nVIDIA® nForce2 MCP-T and ICS1893 Phy
      — Full duplex support at both 10 and 100 Mbps
    • Realtek RTL8110S Gigabit LAN
      — Full duplex support at 10, 100 and 1000 Mbps
       IDE-контроллер:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA и RAID контроллер:
    • Silicon Image Sil3114 PCI to Serial ATA controller
    • Supports four SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1
       IEEE 1394:
    • nVIDIA® nForce2 MCP-T and Agere FW803 Phy chips
    • Supports three 100/200/400 Mb/sec ports
       AGP:
    • Supports AGP 8x up to 2132MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
       Порты ввода/вывода:
    • 1 PS/2 mouse port
    • 1 PS/2 keyboard port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 4 USB 2.0/1.1 ports
    • 2 RJ45 LAN ports
    • 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
    • 3 audio jacks: line-out, line-in and mic-in
    • 2 audio jacks for center/bass and rear out
       Разъемы ввода/вывода:
    • 1 connector for 2 additional external USB 2.0/1.1 ports
    • 3 connectors for 3 external IEEE 1394 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 2 internal audio connectors (AUX-in and CD-in)
    • 1 S/PDIF connector for optical cable connection
    • 1 connector for IrDA interface
    • 4 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 3 fan connectors for CPU fan, chassis fan and 2nd fan
    • 4 diagnostic LEDs
    • 1 diagnostic LED connector for external 4 diagnostic LEDs display
    • EZ touch switches (power switch and reset switch)
       Слоты расширения:
    • 1 AGP slot
    • 5 PCI slots
       Форм-фактор, размеры:
    • 4 layers, ATX form factor
    • 30.5cm (12") x 24.4cm (9.64")

    Infinity

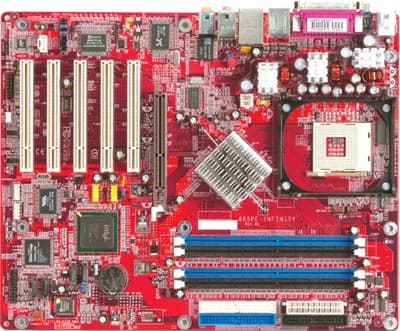

    865PE INFINITY rev. B

    Серия продуктов INFINITY создана для оверлокеров и опытных пользователей, ориентирующихся на лучшее соотношение цена/быстродействие.
    Плата 865PE INFINITY rev. B построена на чипсете 865PE/ICH5, поддерживает 4 порта Serial ATA IDE, Serial ATA RAID, IEEE 1394 FireWire. Для опытных пользователей плата 865PE INFINITY rev. B предлагает новую разработку DFI — технологию Super PATCH. Используя возможности чипсета Intel i865PE, Super PATCH позволяет INFINITY обеспечить высокое быстродействие и обойти конкурентов в таких тестах, как 3Dmark2001SE, PC Mark 2002 и Comanche 4.0.
    Линейка материнских плат INFINITY выделяется среди всех остальных производителей фирменной функцией CMOS Reloaded, предназначенной для разгона системы. CMOS Reloaded позволяет пользователем создавать РЕЗЕРВНУЮ КОПИЮ конфигураций под определенным именем, ЗАГРУЖАТЬ сохранения в зависимости от того или иного приложения, а также ПЕРЕИМЕНОВЫВАТЬ их. На одном компьютере можно установить до 4 конфигураций, назначив каждую для конкретной операционной системы.
    Продукты серии INFINITY легко отличимы по красному цвету печатных плат.

    Технические характеристики:

       Поддерживаемые процессоры:
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.2GHz+
      — Intel Hyper-Threading Technology
      — FSB: 533MHz and 800MHz
    • Intel® Celeron® processor
      — 400MHz system data bus
       Разъем процессора:
    • Socket 478
       Чипсет:
    • Intel® 865PE chipset
      — Intel® 865PE Memory Controller Hub (MCH)
      — Intel® 82801EB I/O Controller Hub (ICH5)
       Разъемы памяти:
    • Four 184-pin DDR DIMM sockets
    • Supports dual channel (128-bit wide) memory interface
    • Supports up to 4GB system memory
    • Supports non-ECC (x64) DIMM using 128Mb, 256Mb or 512Mb
    • Supports unbuffered DIMMs
       BIOS
    • Award BIOS
    • Genie BIOS provides:
      – CPU/DRAM overclocking
      – AGP/PCI/SATA overclocking
      – CPU/DIMM/AGP overvoltage
    • 4Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-Keyboard/Mouse
      – Wake-On-USB Keyboard
      – Wake-On-RING (external modem)
      – Wake-On-LAN
      – RTC timer to power-on the system
    • AC power failure recovery
       Аппаратный контроль:
    • Monitors CPU/system temperature and overheat alarm
    • Monitors CPU/1.5V/5VSB/VBAT/3.3V/5V/±12V voltage and failure alarm
    • Monitors CPU/chassis/2nd fan speed and failure alarm
    • Automatic chassis/2nd fans on/off control
    • Read back capability that displays temperature, voltage and fan speed
    • Opened chassis alarm
       Звук:
    • C-Media audio codec
    • 6-channel audio output
    • S/PDIF-in/out interface
       Сетевой адаптер:
    • Realtek RTL8110S Gigabit LAN PCI controller
    • Full duplex support at both 10, 100 and 1000 Mbps
       IDE-контроллер:
    • Supports ATA/33, ATA/66 and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
       Serial ATA и RAID контроллер:
    • Silicon Image Sil3112A PCI to Serial ATA controller
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1
       IEEE 1394:
    • VIA VT6306 PCI 1394 integrated host controller
    • Supports three 100/200/400 Mb/sec ports
       AGP:
    • Supports 1.5V AGP 8x (2.13GB/sec.) and AGP 4x (1066MB/sec.) for 3D graphics applications (AGP 2x and 3.3V AGP card are not supported)
    • Supports AGP 3.0 and AGP 2.0 spec.
       Порты ввода/вывода:
    • 1 PS/2 mouse port
    • 1 PS/2 keyboard port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 4 USB 2.0/1.1 ports
    • 1 1394 port
    • 1 RJ45 LAN port
    • 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
    • 3 audio jacks: line-out, line-in and mic-in
    • 2 audio jacks for center/bass and rear out
       Разъемы ввода/вывода:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 2 connectors for 2 external IEEE 1394 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 connector for an external game/MIDI port
    • 2 internal audio connectors (CD-in and AUX-in)
    • 1 S/PDIF connector for optical cable connection
    • 1 connector for IrDA interface
    • 4 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power connectors (20-pin and 4-pin 12V)
    • 1 Wake-On-LAN connector
    • 1 opened chassis alarm connector
    • CPU fan, chassis fan and 2nd fan connectors
       Слоты расширения:
    • 1 AGP slot
    • 5 PCI slots
       Совместимость:
    • PCI 2.2 and AC ’97 compliant
    • Intel AGP version 3.0
       Форм-фактор, размеры:
    • 4 layers, ATX form factor
    • 30.5cm (12") x 24.4cm (9.6")

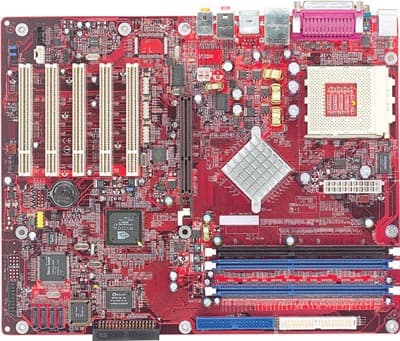

    NFII-Ultra INFINITY

    Серия продуктов INFINITY создана для оверлокеров и опытных пользователей, ориентирующихся на лучшее соотношение цена/быстродействие.
    Плата NFII-Ultra INFINITY на чипсете nForce2 Ultra 400/MCP-T предназначена поклонникам AMD. Плата поддерживает двухканальную память DDR400 до 3GB, 6-и канальный звук, сетевую карту, IEEE 1394 FireWire и 4 порта Serial ATA IDE для SATA RAID 0/1/0+1.
    Линейка материнских плат INFINITY выделяется среди всех остальных производителей фирменной функцией CMOS Reloaded, предназначенной для разгона системы. CMOS Reloaded позволяет пользователем создавать РЕЗЕРВНУЮ КОПИЮ конфигураций под определенным именем, ЗАГРУЖАТЬ сохранения в зависимости от того или иного приложения, а также ПЕРЕИМЕНОВЫВАТЬ их. На одном компьютере можно установить до 4 конфигураций, назначив каждую для конкретной операционной системы.
    Продукты серии INFINITY легко отличимы по красному цвету печатных плат.

    Технические характеристики:

       Поддерживаемые процессоры:
    • AMD Athlon XP 266/333/400MHz FSB
    • AMD Athlon 200/266MHz FSB
    • AMD Duron 200/266MHz FSB
       Разъем процессора:
    • Socket A
       Чипсет:
    • nVIDIA® nForce2 chipset
      - nForce2 Ultra 400
      - nForce2 MCP-T
       Разъемы памяти:
    • Supports dual channel memory interface
    • Supports up to 3GB memory (unbuffered DIMM)
    • Supports PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) and PC3200 (DDR400) DDR SDRAM DIMM, 2.5V type
    • Three 184-pin DDR SDRAM DIMM sockets
       BIOS
    • Award BIOS, Windows® 95/98/2000/ME/XP Plug and Play compatible
    • Genie BIOS provides:
      – CPU/DRAM/AGP overclocking
      – CPU/AGP/DRAM/Chipset overvoltage
    • 4Mbit flash memory
    • CMOS Reloaded
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      - Wake-On-PS/2 Keyboard/Mouse
      - Wake-On-USB
      - Wake-On-RING (external modem)
      - Wake-On-LAN
      - RTC timer to power-on the system
    • AC power failure recovery
       Аппаратный контроль:
    • Monitors CPU/system temperature
    • Monitors ±12V/5V/3.3V/VBAT(V)/5VSB(V) voltages
    • Monitors CPU/chassis fan speed
    • Read back capability that displays temperature, voltage and fan speed
    • CPU Temperature Protection function monitors CPU temperature during system boot-up
       Звук:
    • Realtek ALC650
    • AC'97 2.2 S/PDIF extension compliant codec
    • Supports Microsoft® DirectSound/DirectSound 3D
    • AC’97 supported with full duplex, independent sample rate converter for audio recording and playback
    • S/PDIF-in/out interface
    • 6-channel audio output
       Сетевой адаптер:
    • nVIDIA® nForce2 MCP-T and ICS1893 Phy chips
    • Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible PHY
    • Full duplex support at both 10 and 100 Mbps
       IDE-контроллер:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA и RAID контроллер:
    • Silicon Image Sil3114 PCI to Serial ATA controller
    • Supports four SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1
       IEEE 1394:
    • nVIDIA® nForce2 MCP-T and Agere FW803 Phy chips
    • Supports three 100/200/400 Mb/sec ports
       AGP:
    • Supports AGP 8x up to 2132MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
       Порты ввода/вывода:
    • 1 PS/2 mouse port
    • 1 PS/2 keyboard port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
    • 3 audio jacks: line-out, line-in and mic-in
    • 2 audio jacks for center/bass and rear out
       Разъемы ввода/вывода:
    • 1 connector for 2 additional external USB 2.0/1.1 ports
    • 3 connectors for 3 external IEEE 1394 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 2 internal audio connectors (AUX-in and CD-in)
    • 1 S/PDIF connector for optical cable connection
    • 1 connector for IrDA interface
    • 4 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 3 fan connectors for CPU fan, chassis fan and 2nd fan
       Слоты расширения:
    • 1 AGP slot
    • 5 PCI slots
       Форм-фактор, размеры:
    • 4 layers, ATX form factor
    • 30.5cm (12") x 24.5cm (9.64")

    General

    Discreet Intel platforms

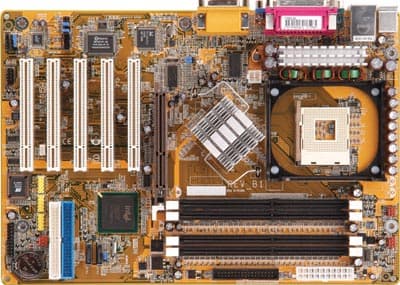

    PS83-BL/PS85-BL rev. B

    Технические характеристики:

       Поддерживаемые процессоры:
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.2GHz+
      — Intel Hyper-Threading Technology
      — FSB: 533MHz and 800MHz
    • Intel® Celeron® processor
      — 400MHz system data bus
       Разъем процессора:
    • Socket 478
       Чипсет:
    • Intel® 865PE chipset (PS83-BL)
      - Intel® 865PE Memory Controller Hub (MCH)
      - Intel® 82801EB I/O Controller Hub (ICH5)
    • Intel® 865G chipset (PS85-BL)
      - Intel® 865G Graphics Memory Controller Hub (GMCH)
      - Intel® 82801EB I/O Controller Hub (ICH5)
       Разъемы памяти:
    • Supports dual channel (128-bit wide) memory interface
      - Each channel supports 2 DIMM sockets
    • Supports up to 4GB system memory
    • Synchronous operation with processor system bus
      - PC2100/PC2700/PC3200 (DDR266/DDR333/DDR400) with 800MHz FSB CPU.
      DDR333 will run at 320MHz memory frequency when used with 800MHz FSB CPU.
      - PC2100/PC2700 (DDR266/DDR333) with 533MHz FSB CPU
      - PC2100 (DDR266) with 400MHz FSB CPU
    • Supports non-ECC (x64) DIMM using 128Mb, 256Mb or 512Mb
    • Supports unbuffered DIMMs
       BIOS
    • Award BIOS
    • 4Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-Keyboard/Mouse
      – Wake-On-USB Keyboard
      – Wake-On-RING (external modem)
      – Wake-On-LAN
      – RTC timer to power-on the system
    • AC power failure recovery
       Аппаратный контроль:
    • Monitors CPU/system temperature and overheat alarm
    • Monitors CPU/1.5V/5VSB/VBAT/3.3V/5V/±12V voltages and failure alarm
    • Monitors CPU/chassis/second fan speed and failure alarm
    • Automatic chassis/second fans on/off control
    • Read back capability that displays temperature, voltage and fan speed
    • Opened chassis alarm
       Звук:
    • 20-bit stereo full-duplex codec with independent variable sampling rate
    • S/PDIF-in/out interface
    • 6-channel audio output
       Сетевой адаптер:
    • Uses Realtek RTL8101L fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps
       Видео (PS85-BL):
    • Graphics memory
      — Shares 1MB/4MB/8MB/16MB of the system memory in DOS mode
      — Uses Dynamic Video Memory Technology (DVMT) in Windows mode
    • Graphics controller
      — Core frequency of 266MHz
    • 2D graphics features
      — Optimized 256-bit BLT engine
    • 3D graphics features
      — 200 megapixels/sec fill rate
      — Maximum 3D resolution: 1600x1200x32 @ 85Hz
       IDE-контроллер:
    • Supports ATA/33, ATA/66 and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
       Serial ATA контроллер:
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
       AGP:
    • Supports 1.5V AGP 8x (2.13GB/sec.) and AGP 4x (1066MB/sec.) for 3D graphics applications (AGP 2x and 3.3V AGP card are not supported)
    • Supports AGP 3.0 and AGP 2.0 spec.
       Порты ввода/вывода:
    • 2 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 2 DB-9 serial ports
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 game port
    • 3 audio jacks: line-out, line-in and mic-in
       Разъемы ввода/вывода:
    • 3 connectors for 6 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 surround connector
    • 1 S/PDIF-in/out connector
    • 1 connector for IrDA interface
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 1 opened chassis alarm connector
    • 3 fan connectors for CPU fan, chassis fan and second fan
       Слоты расширения:
    • 1 AGP slot
    • 5 PCI slots
       Совместимость:
    • PCI 2.2 and AC ’97 compliant
    • Intel AGP version 3.0
       Форм-фактор, размеры:
    • 4 layers, ATX form factor
    • 30.5cm (12") x 21cm (8.26")

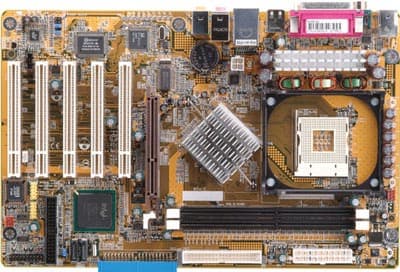

    848P-AL rev. C


    Технические характеристики:

       Поддерживаемые процессоры:
    • Intel® Pentium®4 (Prescott and Northwood) processor up to 3.2GHz+
      – Intel Hyper-Threading Technology
      – FSB: 533MHz and 800MHz
    • Intel® Celeron® processor
      – 400MHz system data bus
       Разъем процессора:
       Socket 478
       Чипсет:
    • Intel® 848P chipset
      — Intel® 848P Memory Controller Hub (MCH)
      — Intel® 82801EB I/O Controller Hub (ICH5)
       Разъемы памяти:
    • Two 184-pin DDR DIMM sockets
    • Supports up to 2GB system memory
    • Synchronous operation with processor system bus
      – PC2100/PC2700/PC3200 (DDR266/DDR333/DDR400) with 800MHz FSB CPU. DDR333 will run at 320MHz memory frequency when used with 800MHz FSB CPU.
      – PC2100/PC2700 (DDR266/DDR333) with 533MHz FSB CPU
      – PC2100 (DDR266) with 400MHz FSB CPU
    • Supports non-ECC (x64) DIMM using 128Mb, 256Mb or 512Mb.
    • Supports unbuffered DIMMs
       BIOS
    • Award BIOS
    • 4Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-Keyboard/Mouse
      – Wake-On-USB Keyboard
      – Wake-On-RING (external modem)
      – Wake-On-LAN
      – RTC timer to power-on the system
    • AC power failure recovery
       Звук:
    • 20-bit stereo full-duplex codec with independent variable sampling rate
    • 6-channel audio output
       Сетевой адаптер:
    • Uses Realtek RTL8101L fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps
       IDE-контроллер:
    • Supports ATA/33, ATA/66 and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
       Serial ATA контроллер:
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
       AGP:
    • Supports 1.5V AGP 8x (2.13GB/sec.) and AGP 4x (1066MB/sec.) for 3D graphics applications (AGP 2x and 3.3V AGP card are not supported)
    • Supports AGP 3.0 and AGP 2.0 spec.
       Порты ввода/вывода:
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
    • 3 audio jacks: line-out, line-in and mic-in
    • 2 audio jacks for center/bass and rear out
       Разъемы ввода/вывода:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 S/PDIF connector for optical cable connection
    • 1 connector for IrDA interface
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 2 fan connectors for CPU fan and chassis fan
       Слоты расширения:
    • 1 AGP slot
    • 5 PCI slots
       Совместимость:
    • PCI 2.2 and AC ’97 compliant
    • Intel AGP version 3.0
       Форм-фактор, размеры:
    • 4 layers, ATX form factor
    • 29.5cm (11.61") x 19cm (7.48")

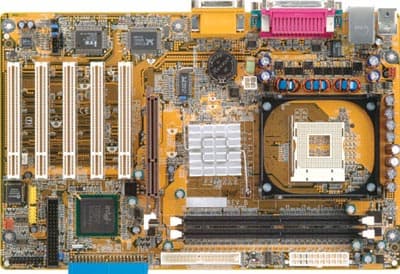

    NB78-BL/B


    Технические характеристики:

       Поддерживаемые процессоры:
    • Intel® Pentium® 4 Processor with Hyper-Threading Technology — 533MHz FSB
    • Intel® Pentium® 4 processor (478-pin)
      – 533MHz system data bus
      – 400MHz system data bus
    • Intel® Celeron® processor (478-pin)
      – 400MHz system data bus
       Разъем процессора:
    • Socket 478
       Чипсет:
    • Intel® 845PE chipset
      — Intel® 845PE Memory Controller Hub (MCH)
      — Intel® 82801DB I/O Controller Hub (ICH4)
       Разъемы памяти:
    • Two 184-pin DDR SDRAM DIMM sockets
    • 2.5V unbuffered PC1600 (DDR200), PC2100 (DDR266) or PC2700 (DDR333) DDR SDRAM DIMM
      — DDR333 is supported only when using a 533MHz FSB processor
    • Supports maximum of 2GB system memory using 64Mbit, 128Mbit, 256Mbit or 512Mbit technology
      — Double-sided x16 DDR SDRAM DIMM is not supported
       BIOS
    • Award BIOS, Windows® 98SE/2000/ME/XP Plug and Play compatible
    • 2Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-PS/2 Keyboard/Mouse
      – Wake-On-USB Keyboard
      – Wake-On-LAN
      – RTC timer to power-on the system
       Звук:
    • 16-bit stereo full-duplex codec with independent variable sampling rate
    • 6-channel audio output
       Сетевой адаптер:
    • Uses Realtek RTL8100C fast ethernet controller
    • Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible PHY
       IDE-контроллер:
    • Supports ATA/33, ATA/66 and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
       AGP:
    • Supports 1.5V AGP 4x with up to 1066MB/sec. bandwidth for 3D graphics applications
       Порты ввода/вывода:
    • 2 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 2 DB-9 serial ports
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 game/MIDI port
    • 3 audio jacks: line-out, line-in and mic-in
       Разъемы ввода/вывода:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 connector for IrDA interface
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 2 connectors for CPU fan and chassis fan
       Слоты расширения:
    • 1 AGP slot
    • 5 PCI slots
       Совместимость:
    • PCI 2.2 and AC ’97 compliant
    • Intel AGP version 2.0
       Форм-фактор, размеры:
    • 4 layers, ATX form factor
    • 29.5cm (11.6") x 19cm (7.48")

    PT880-ALF/PT800-AL

    Используя чипсеты VIA PT880 и PT800, платы PT880-ALF и PT800-AL, соответственно, являются лучшим решением для платформ P4, предназначены для повседневного использования и обладают гибкими возможностями апгрейда. Платы PT880-ALF и PT800-AL используют все преимущества архитектуры чипсетов VIA PT880/PT800, поддерживают FSB 800, Технологию Intel Hyper-Threading, DDR400 и 8X AGP. Среди встроенных функций можно отметить 6-и канальный звук, сетевую карту 10/100 Mbps Ethernet, SATA RAID (0/1/ JBOD) для обеспечения высокой безопасности хранения данных, порт IEEE 1394 (опционально для платы PT800-AL) и 8 USB портов для внешних устройств.

    Технические характеристики:

       Поддерживаемые процессоры:
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.06GHz+
      — Intel Hyper-Threading Technology
      — FSB: 533MHz and 800MHz
    • Intel® Celeron® processor
      — 400MHz system data bus
       Разъем процессора:
    • Socket 478
       Чипсет:
    • VIA® chipset
      – North bridge: VIA® PT880 (PT880-ALF). Advanced high performance 128-bit DDR DRAM controller
      – North bridge: VIA® PT800 (PT800-AL)
      – South bridge: VIA® VT8237
       Разъемы памяти:
    • Supports dual channel (128-bit wide) memory interface (PT880-ALF)
    • Three 184-pin DDR DIMM sockets
    • Supports up to 3GB using PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) and PC3200 (DDR400) unbuffered DDR SDRAM DIMM, 2.6V type
       BIOS
    • Award BIOS
    • 4Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-PS/2 Keyboard/Mouse
      – Wake-On-USB Keyboard/Mouse
      – Wake-On-Ring (external modem)
      – Wake-On-LAN
      – RTC timer to power-on the system
    • AC power failure recovery
       Звук:
    • AC'97 2.2 extension compliant codec
    • S/PDIF-in/out compressed digital output
    • 6-channel audio output via software
       Сетевой адаптер:
    • Phy fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps
       IDE-контроллер:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA и RAID контроллер:
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0, RAID 1 and JBOD
       IEEE 1394:
    • VIA VT6307 PCI 1394 integrated host controller (optional for PT800-AL)
    • Supports two 100/200/400 Mb/sec ports
       AGP:
    • Supports AGP 8x up to 2133MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
       Порты ввода/вывода:
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 IEEE 1394 port (optional for PT800-AL)
    • 3 audio jacks: line-out, line-in and mic-in
       Разъемы ввода/вывода:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 connector for 1 external IEEE 1394 port
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 2 fan connectors
       Слоты расширения:
    • 1 AGP slot
    • 5 PCI slots
       Форм-фактор, размеры:
    • 4 layers, ATX form factor
    • 30.5cm (12") x 22cm (8.66")

    Integrated Intel platforms

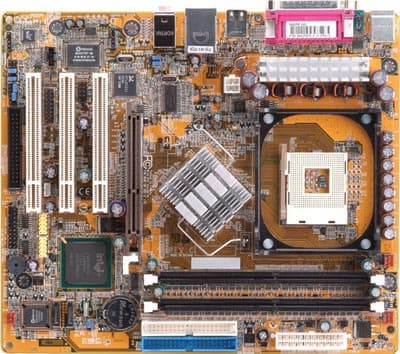

    PS35-BL/865GV-MLV/865PE-ML

    Серия материнских плат PS35-BL, 865GV-MLV и 865PE-ML построена на чипсетах Intel i865x, на печатных платах с унифицированной разводкой в формате mATX. Платы PS35-BL, 865GV-MLV, 865PE-ML используют все преимущества архитектуры семейства i865x (865G, 865GV и 865PE соответственно), поддерживают FSB 800, технологию Intel Hyper-Threading, процессоры Pentium® 4 (Prescott and Northwood) с частотой до 3.2GHz+. Платы PS35-BL и 865GV-MLV отличаются от платы 865PE-ML наличием интегрированного графического ядра - Intel Extreme Graphics 2 (второго поколения). В силу особенностей чипсета i865GV на плате 865GV-MLV отсутствует слот AGP.

    Технические характеристики:

       Поддерживаемые процессоры:
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.2GHz+
      – Intel Hyper-Threading Technology
      – FSB: 533MHz and 800MHz
    • Intel® Celeron® processor
      – 400MHz system data bus
       Разъем процессора:
    • Socket 478
       Чипсет:
    • Intel® 865G chipset (PS35-BL)
      - Intel® 865G Graphics Memory Controller Hub (GMCH)
      - Intel® 82801EB I/O Controller Hub (ICH5)
    • Intel® 865GV chipset (865GV-MLV)
      - Intel® 865GV Graphics Memory Controller Hub (GMCH)
      - Intel® 82801EB I/O Controller Hub (ICH5)
    • Intel® 865PE chipset (865PE-ML)
      - Intel® 865PE Memory Controller Hub (MCH)
      - Intel® 82801EB I/O Controller Hub (ICH5)
       Разъемы памяти:
    • Two 184-pin DDR DIMM sockets
    • Supports dual channel (128-bit wide) memory interface
    • Supports up to 2GB system memory
    • Supports non-ECC (x64) DIMM using 128Mb, 256Mb or 512Mb
    • Supports unbuffered DIMMs
       BIOS
    • Award BIOS
    • 4Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-Keyboard/Mouse
      – Wake-On-USB Keyboard
      – Wake-On-RING (external modem)
      – Wake-On-LAN
      – RTC timer to power-on the system
    • AC power failure recovery
       Защита процессора:
    • Supports shutdown temperature - automatic shutdown upon system overheat
       Звук:
    • 20-bit stereo full-duplex codec with independent variable sampling rate
    • 6-channel audio output
    • S/PDIF-in/out interface
       Сетевой адаптер:
    • Uses Realtek RTL8101L fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps
       Видео (PS35-BL/865GV-MLV):
    • Graphics memory
      - Shares 1MB/8MB/16MB of the system memory in DOS mode
      - Uses Dynamic Video Memory Technology (DVMT) in  Windows mode
    • Graphics controller
      - Core frequency of 266MHz
    • 2D graphics features
      - Optimized 256-bit BLT engine
    • 3D graphics features
      - 200 megapixels/sec fill rate
      - Maximum 3D resolution: 1600x1200x32 @ 85Hz
       IDE-контроллер:
    • Supports ATA/33, ATA/66 and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
       Serial ATA контроллер:
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
       AGP (PS35-BL/865PE-ML):
    • Supports AGP 3.0 and AGP 2.0 spec.
    • AGP 8x data rate provides a theoretical maximum bandwidth of 2.13GB/sec.
    • Supports 1.5V AGP 4x with up to 1066MB/sec. bandwidth for 3D graphics applications (3.3V AGP card is not supported)
       Порты ввода/вывода:
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-15 VGA port
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 3 audio jacks: line-out, line-in and mic-in
       Разъемы ввода/вывода:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 connector for 1 external serial port
    • 1 connector for 1 external game/MIDI port
    • 1 connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 surround connector
    • 1 S/PDIF-in/out connector
    • 1 connector for IrDA interface
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 3 connectors for CPU fan, chassis fan and second fan
       Слоты расширения:
    • 1 AGP slot (PS35-BL/865PE-ML)
    • 3 PCI slots
       Совместимость:
    • PCI 2.2 and AC ’97 compliant
    • Intel AGP version 3.0
       Форм-фактор, размеры:
    • 4 layers, microATX form factor
    • 24.5cm (9.64") x 20cm (7.87")

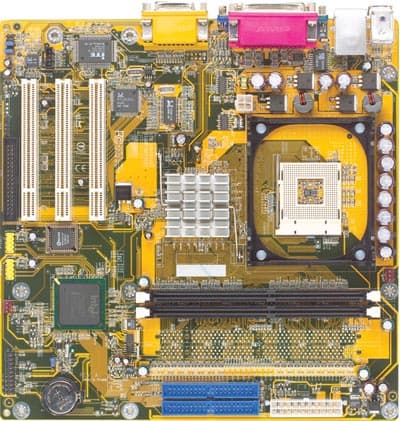

    845GV-MLV

    Технические характеристики:

       Поддерживаемые процессоры:
    • Intel® Pentium® 4 Processor with Hyper-Threading Technology — 533MHz FSB
    • Intel® Pentium® 4 processor (478-pin)
      — 533MHz system data bus
      — 400MHz system data bus
    • Intel® Celeron® processor (478-pin)
      — 400MHz system data bus
       Разъем процессора:
    • Socket 478
       Чипсет:
    • Intel® 845GV chipset
      — Intel® 845GV B1 stepping Graphics Memory Controller Hub (GMCH)
      — Intel® 82801DB I/O Controller Hub (ICH4)
       Разъемы памяти:
    • Two 184-pin DDR DIMM sockets
    • 2.5V unbuffered PC1600 (DDR200), PC2100 (DDR266) or PC2700 (DDR333) DDR SDRAM DIMM
    • Supports maximum of 2GB system memory using 64Mbit, 128Mbit, 256Mbit or 512Mbit technology
    • Double-sided x16 DDR SDRAM DIMM is not supported
       BIOS
    • Award BIOS Windows® 98SE/2000/ME/XP Plug and Play compatible
    • Supports SCSI sequential boot-up
    • Flash EPROM for easy BIOS upgrades
    • Supports DMI 2.0 function
    • 2Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-Keyboard
      – Wake-On-USB
      – Wake-On-RING (external modem)
       Звук:
    • Realtek ALC101 audio codec
    • 20-bit stereo full-duplex codec with independent variable sampling rate
    • High quality differential CD input
    • True stereo line level outputs
    • 2-channel audio output
       Сетевой адаптер:
    • Uses Realtek RTL8101L fast ethernet controller
    • Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible PHY
       Видео
    • Graphics memory
      — Shares 512K/1MB/8MB of the system memory in DOS mode
      — Uses Dynamic Video Memory Technology (DVMT) in Windows mode
    • Graphics controller
      — Core frequency of 200MHz
      — 350MHz integrated 24-bit RAMDAC
    • 2D graphics features
      — Optimized 256-bit BLT engine
    • 3D graphics features
      — 200 megapixels/sec fill rate
    • Software drivers
      — Windows® 98SE/2000/ME/XP
      — Windows NT® 4.0
       IDE-контроллер:
    • Supports ATA/33, ATA/66, and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
       Порты ввода/вывода:
    • 2 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-15 VGA port
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 game port
    • 3 audio jacks: line-out, line-in and mic-in
       Разъемы ввода/вывода:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 connector for IrDA interface
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 2 fan connectors for CPU fan and chassis fan
       Слоты расширения:
    • 3 PCI slots
       Совместимость:
    • PCI 2.2 and AC ’97 compliant
       Форм-фактор, размеры:
    • 4 layers, microATX form factor
    • 24.4cm (9.61") x 24.4cm (9.61")

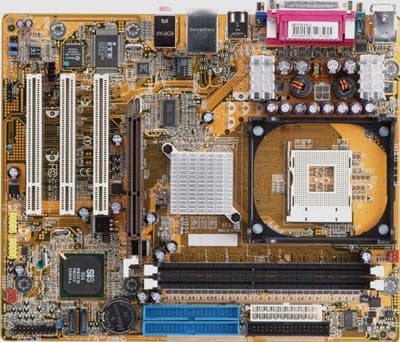

    661FX-MLV rev. C

    Чипсет SiS 661FX-является одним из самых популярных для платформы Intel P4. Плата 661FX-MLV rev. C использует все преимущества архитектуры чипсета SiS 661FX и поддерживает процессоры Intel Prescott. Кроме того, обеспечивается поддержка FSB 800, технологии Intel Hyper-Threading, DDR 400 и 8 X AGP. Среди встроенных функций можно отметить графику SiS Real 256 E, 6-канальный звук, сетевую карту 10/100 Mbps Ethernet, SATA RAID (0/1/0+1/ JBOD ) и 8 портов USB 2.0 для внешних устройств.

    Технические характеристики:

       Поддерживаемые процессоры:
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.06GHz
      — Intel Hyper-Threading Technology
      — FSB: 533MHz and 800MHz
    • Intel® Celeron® processor
      — 400MHz system data bus
       Разъем процессора:
    • Socket 478
       Чипсет:
    • SiS® chipset
      — North bridge: SiS® 661FX
      — South bridge: SiS® 964
       Разъемы памяти:
    • Two 184-pin DDR DIMM sockets
    • Supports 4 banks up to 2GB using PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) or PC3200 (DDR400) unbuffered DDR SDRAM DIMM, 2.6V type
      — 16Mb, 64Mb, 128Mb, 256Mb and 512Mb SDRAM technology
      with page size from 2KB up to 16KB
       BIOS
    • Award BIOS
    • 4Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-PS/2 Keyboard/Mouse
      – Wake-On-USB Keyboard/Mouse
      – Wake-On-RING (external modem)
      – Wake-On-LAN
      – RTC timer to power-on the system
    • AC power failure recovery
       Звук:
    • AC'97 2.2 extension compliant codec
    • S/PDIF-in/out interface
    • 6-channel audio output
       Сетевой адаптер:
    • Phy fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps
       Видео
    • Bi-directional 16-bit data bus
    • Performs 1GB/s bandwidth in 133MHz x 4 mode
    • 3D graphics accelerator
      — Built-in high performance 256-bit 3D engine
      — Supports Ultra-AGPII up to 2.7GB/s bandwidth
      — Up to 166MHz 3D engine clock speed
    • 2D graphics accelerator
       IDE-контроллер:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA и RAID контроллер:
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0, RAID 1 and JBOD
       AGP:
    • Supports AGP 8x up to 2132MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
       Порты ввода/вывода:
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-15 VGA port
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 3 audio jacks: line-out, line-in and mic-in
       Разъемы ввода/вывода:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 S/PDIF-in/out connector
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • CPU fan and chassis fan connectors
       Слоты расширения:
    • 1 AGP slot
    • 3 PCI slots
       Форм-фактор, размеры:
    • 4 layers, microATX form factor
    • 24.4cm (9.6") x 20cm (7.87")

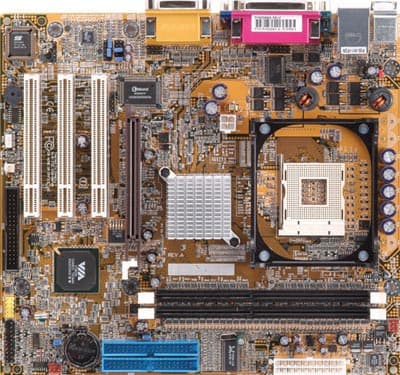

    P4M266A-MLV

    Технические характеристики:

       Поддерживаемые процессоры:
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.06GHz
      — Intel Hyper-Threading Technology
      — FSB: 400MHz and 533MHz
    • Intel® Celeron® processor
      — 400MHz system data bus
       Разъем процессора:
    • Socket 478
       Чипсет:
    • VIA® chipset
      — North bridge: VIA® P4M266A
      — South bridge: VIA® VT8235CD
       Разъемы памяти:
    • Two 184-pin DDR DIMM sockets
    • Supports up to 2GB using PC1600 (DDR200) or PC2100 (DDR266) unbuffered DDR SDRAM DIMM, 2.5V type
    • Uses x8/x16 512MB technology
       BIOS
    • Award BIOS
    • 4Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-PS/2 Keyboard
      – Wake-On-USB Keyboard/Mouse
      – Wake-On-Ring
      – Wake-On-LAN
      – RTC timer to power-on the system
    • AC power failure recovery
       Звук:
    • Supports Microsoft® DirectSound/DirectSound 3D
    • S/PDIF-in/out compressed digital output
    • 6-channel audio output via software
       Сетевой адаптер:
    • Integrated LAN controller
    • Full duplex support at both 10 and 100 Mbps
       Видео:
    • Full featured Accelerated Graphics Port (AGP) controller
    • High resolution CRT RGB interface
    • Integrated Savage8 2D/3D graphics controller and video accelerator
      — Optimized Shared Memory Architecture (SMA)
      — 8/16/32MB frame buffer using system memory
    • 3D rendering features
    • 2D hardware acceleration features
    • Motion video architecture
    • Full software support
       IDE-контроллер:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       AGP:
    • Supports AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications.
       Порты ввода/вывода:
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 RJ45 LAN port
    • 2 USB 2.0/1.1 ports
    • 1 DB-9 serial port
    • 1 DB-15 VGA port
    • 1 DB-25 parallel port
    • 1 game/MIDI port
    • 3 audio jacks: line-out, line-in and mic-in
       Разъемы ввода/вывода:
    • 1 connector for 2 additional external USB 2.0/1.1 ports
    • 1 connector for 1 external serial port
    • 1 front audio connector for external line-out and mic-in jacks
    • 2 internal audio connectors (AUX-in and CD-in)
    • 1 S/PDIF-in/out connector
    • 1 connector for IrDA interface
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 2 fan connectors
       Слоты расширения:
    • 1 AGP slot
    • 3 PCI slots
       Форм-фактор, размеры:
    • 4 layers, ATX form factor
    • 24.3cm (9.56") x 22cm (8.66")

    AMD platforms

    NFII-Ultra AL

    Материнская плата DFI NFII-Ultra AL использует богатейшие функциональные возможности чипсета nForce2 Ultra 400 в сочетании с высокопроизводительным видео. Плата NFII-Ultra AL является бестселлером для систем на базе процессоров AMD.

    Технические характеристики:

       Поддерживаемые процессоры:
    • AMD Athlon(TM) XP 266/333/400MHz FSB
    • AMD Athlon(TM) 200/266MHz FSB
       Разъем процессора:
    • Socket A
       Чипсет:
    • nVIDIA® nForce2 chipset
      — nForce2 Ultra 400
      — nForce2 MCP
       Разъемы памяти:
    • Supports dual channel memory interface
    • Supports up to 3GB memory (unbuffered DIMM)
    • Supports PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) and PC3200 (DDR400) DDR SDRAM DIMM, 2.5V type
    • Three 184-pin DDR SDRAM DIMM sockets
       BIOS
    • Award BIOS, Windows® 95/98/2000/ME/XP Plug and Play compatible
    • Genie BIOS provides:
      – CPU/DRAM overclocking
      – AGP/PCI/SATA overclocking
      – CPU/DIMM/AGP overvoltage
    • Flash EPROM for easy BIOS upgrades
    • 4Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-Keyboard/Mouse
      – Wake-On-USB
      – Wake-On-RING (external modem)
      – Wake-On-LAN
      – RTC timer to power-on the system
       Аппаратный контроль:
    • Monitors CPU/system temperature
    • Monitors ±12V/5V/3.3V/VBAT(V)/5VSB(V) voltages
    • Monitors CPU/chassis fan speed
    • Read back capability that displays temperature, voltage and fan speed
    • CPU Temperature Protection function monitors CPU temperature during system boot-up
       Звук:
    • AC'97 2.2 S/PDIF extension compliant codec
    • 6-channel audio output
       Сетевой адаптер:
    • nVIDIA® nForce2 MCP and ICS1893 Phy chips
    • Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible PHY
       IDE-контроллер:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA:
    • Uses Marvell 88i8030 chip
    • Supports one SATA (Serial ATA) interface which is compliant with SATA 1.0 specification (1.5Gbps interface)
       AGP:
    • Supports AGP 8x up to 2132MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
       Порты ввода/вывода:
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 2 DB-9 serial ports
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 3 audio jacks: line-out, line-in and mic-in
       Разъемы ввода/вывода:
    • 1 connector for 2 additional external USB 2.0/1.1 ports
    • 1 connector for 1 external game/MIDI port
    • 1 front audio connector for external line-out and mic-in jacks
    • 2 internal audio connectors (AUX-in and CD-in)
    • 1 4-channel audio output connector
    • 1 S/PDIF-in/out connector
    • 1 connector for IrDA interface
    • 1 connector for serial ATA interface
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 3 fan connectors for CPU fan, chassis fan and second fan
       Слоты расширения:
    • 1 AGP slot, that support 8x/4x AGP
    • 5 PCI slots
       Форм-фактор, размеры:
    • 4 layers, ATX form factor
    • 30.5cm (12") x 24.5cm (9.64")

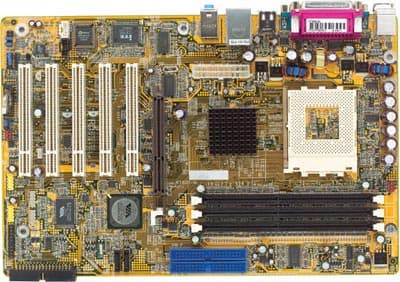

    KT600-AL

    Технические характеристики:

       Поддерживаемые процессоры:
    • AMD Athlon(TM)XP 266/333/400MHz FSB
    • AMD AthlonTM 200/266MHz FSB
    • AMD DuronTM 200/266MHz FSB
       Разъем процессора:
    • Socket A
       Чипсет:
    • VIA® chipset
      –North bridge: VIA® KT600
      –South bridge: VIA® VT8237
       Разъемы памяти:
    • Three 184-pin DDR SDRAM DIMM sockets
    • Supports up to 3GB memory (unbuffered DIMM)
    • Uses PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) or PC3200 (DDR400) DDR SDRAM DIMM, 2.5V type
       BIOS
    • Award BIOS
    • 2Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-PS/2 Keyboard/Mouse
      – Wake-On-USB
      – Wake-On-LAN
      – Wake-On-Ring (for external modem)
      – RTC timer to power-on the system
       Аппаратный контроль:
    • Monitors CPU/system temperature and overheat alarm
    • Monitors ±12V/+5V/3.3V/CPU/VBAT(V)/5VSB(V) voltages
    • Monitors CPU/system fan speed
    • Read back capability that displays temperature, voltage and fan speed
    • CPU Fan Protection function during system boot-up
    • CPU Temperature Protection function during system boot-up
       Звук:
    • AC'97 2.2 S/PDIF extension compliant codec
    • S/PDIF-in/out compressed digital output
    • 6-channel audio output
       Сетевой адаптер:
    • VIA 6103 LAN Phy
    • Full duplex support at both 10 and 100 Mbps
       USB:
    • Supports 8 USB 2.0 (480Mb/second) / USB 1.1 (12Mb/second) interfaces.
       IDE-контроллер:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA и RAID контроллер:
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1 and JBOD
       AGP:
    • Supports AGP 8x up to 2133MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
       Порты ввода/вывода:
    • 1 PS/2 mouse port
    • 1 PS/2 keyboard port
    • 4 USB 2.0/1.1 ports
    • 1 LAN port
    • 2 DB-9 serial ports
    • 1 DB-25 parallel port
    • 3 audio jacks: line-out, line-in and mic-in
       Разъемы ввода/вывода:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 2 internal audio connectors (AUX-in and CD-in)
    • 1 surround connector
    • 1 S/PDIF-in/out connector
    • 2 SATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 1 ATX power supply connector
    • 2 fan connectors
       Слоты расширения:
    • 1 AGP slot
    • 5 PCI slots
       Форм-фактор, размеры:
    • 4 layers, ATX form factor
    • 30.5cm (12") x 20cm (7.87")

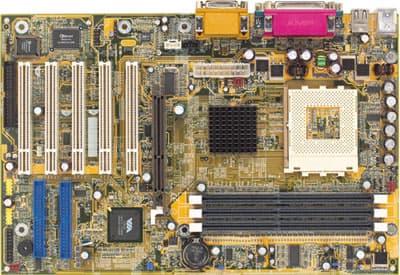

    AD77

    Материнская плата AD77 построена на легендарном чипсете VIA KT400A и является идеальным решением для систем с повышенными требованиями к стабильности при минимальной цене в сочетании с богатыми функциональными возможностями.

    Технические характеристики:

       Поддерживаемые процессоры:
    • AMD AthlonTM XP 266/333MHz FSB
    • AMD AthlonTM 200/266MHz FSB
    • AMD DuronTM 200MHz FSB
       Разъем процессора:
    • Socket A
       Чипсет:
    • VIA KT400A and VT8235CD
       Разъемы памяти:
    • Supports up to 3GB memory (unbuffered DIMM)
    • Uses PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) or PC3200 (DDR400) DDR SDRAM DIMM, 2.5V type
    • Three 184-pin DDR SDRAM DIMM sockets
       BIOS
    • Award BIOS
    • Windows 95/98/2000/ME/XP Plug and Play compatible
    • 2Mbit flash memory
       Управление питанием:
    • Supports ACPI specification and OS Directed Power Management
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      — Wake-On-Ring (external and internal modem)
      — Wake-On-LAN
      — RTC timer to power-on the system
       Аппаратный контроль:
    • Monitors CPU/system temperature and overheat alarm
    • Monitors +12V/-12V/+5V/-5V/3.3V/CPU/VBAT(V)/5VSB(V) voltages and failure alarm
    • Monitors CPU/chassis fan speed and failure alarm
    • Automatic chassis fan on/off control
    • Read back capability that displays temperature, voltage and fan speed
    • CPU Fan Protection function during system boot-up
    • CPU Temperature Protection function during system boot-up
    • CPU Overclocking function by 1MHz stepping
       Звук:
    • AC97 compliant
    • 6-channel audio output
       IDE-контроллер:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
       AGP:
    • Supports AGP 8x up to 2133MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications.
       Порты ввода/вывода:
    • 2 USB 2.0/1.1 ports
    • 2 DB-9 serial ports
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 game/MIDI port
    • 3 audio jacks: line-out, line-in and mic-in
       Разъемы ввода/вывода:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 connector for external line-out and mic-in jacks
    • 2 internal audio connectors (AUX-in and CD-in)
    • 1 S/PDIF-in/out connector
    • 1 connector for IrDA interface
    • 2 IDE connectors
    • 1 floppy connector
    • 1 ATX power supply connector
    • 1 Wake-On-LAN connector
    • 1 Wake-On-Ring connector
    • CPU fan, chassis fan and second chassis fan connectors
       Слоты расширения:
    • 1 AGP slot
    • 5 PCI slots
       Форм-фактор, размеры:
    • 4 layers, ATX form factor
    • 30.5cm (12") x 20cm (7.87")

    KM400-MLV

    Технические характеристики:

       Поддерживаемые процессоры:
    • AMD AthlonTM XP 266/333MHz FSB
    • AMD AthlonTM 266MHz FSB
    • AMD DuronTM 200/266MHz FSB
       Разъем процессора:
       Socket A
       Чипсет:
    • VIA® chipset
      –North bridge: VIA KM400
      –South bridge: VIA VT8237
       Разъемы памяти:
    • Two 184-pin DDR SDRAM DIMM sockets
    • Supports up to 2GB memory using PC2100 (DDR266) and PC2700 (DDR333) DDR SDRAM DIMM, 2.5V type
       BIOS
    • Award BIOS
    • 2Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-PS/2 Keyboard/Mouse
      – Wake-On-USB
      – Wake-On-LAN
      – Wake-On-Ring (for external modem)
      – RTC timer to power-on the system
    • AC power failure recovery
       Аппаратный контроль:
    • Monitors CPU temperature during system boot-up
    • Supports shutdown temperature — automatic shutdown upon system overheat
       Звук:
    • Realtek 6-channel codec
    • S/PDIF-out interface
    • 6-channel audio output
       Сетевой адаптер:
    • Phy fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps
       Видео:
    • Integrated S3 2D/3D/Video accelerator
      — Shares 8MB to 64MB of the system memory
      — Optimized Shared Memory Architecture (SMA)
      — High quality DVD video playback
    • Supports 3D rendering features
    • Supports 2D hardware acceleration
    • Supports motion video architecture
       IDE-контроллер:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA и RAID контроллер:
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1 and JBOD
       AGP:
    • Supports AGP 8x (2.13GB/sec.) and AGP 4x (1066MB/sec.)bandwidth for 3D graphics applications
       Порты ввода/вывода:
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-15 VGA port
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 mini-DIN-6 PS/2 mouse port
    • 3 audio jacks: line-out, line-in and mic-in
       Разъемы ввода/вывода:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 S/PDIF-out connector
    • 2 SATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 2 fan connectors for CPU fan and chassis fan
       Слоты расширения:
    • 1 AGP slot
    • 3 PCI slots
       Форм-фактор, размеры:
    • 4 layers, microATX form factor
    • 24.4cm (9.6") x 21cm (8.26")

    KM266Pro-MLV

    Чипсет VIA KM266Pro является одним из самых популярных чипсетов для платформы AMD. Плата KM266Pro-MLV использует все преимущества архитектуры чипсета VIA KM266Pro и поддерживает процессоры AMD Athlon XP и Duron. Кроме того, обеспечивается поддержка FSB333, DDR333 и 4X AGP. Среди встроенных функций можно отметить графику UniChrome, 6-канальный звук, сетевую карту 10/100 Mbps Ethernet и 6 портов USB 2.0 для внешних устройств. Материнская плата DFI KM266Pro-MLV — оптимальное соотношение цена/качество для недорогих систем на базе процессоров AMD.

    Технические характеристики:

       Поддерживаемые процессоры:
    • AMD AthlonTM XP 266/333MHz FSB
    • AMD AthlonTM 266MHz FSB
    • AMD DuronTM 200/266MHz FSB
       Разъем процессора:
    • Socket A
       Чипсет:
    • VIA® chipset
      – North bridge: VIA® KM266Pro
      – South bridge: VIA® VT8235
       Разъемы памяти:
    • Two 184-pin DDR SDRAM DIMM sockets
    • Supports up to 2GB memory using PC2100 (DDR266) and PC2700 (DDR333) DDR SDRAM DIMM, 2.5V type
       BIOS
    • Award BIOS
    • 2Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
      – Wake-On-Events include:
      – Wake-On-PS/2 Keyboard/Mouse
      – Wake-On-USB
      – Wake-On-LAN
      – Wake-On-Ring (for external modem)
      – RTC timer to power-on the system
    • AC power failure recovery
       Аппаратный контроль:
    • Monitors CPU temperature during system boot-up
    • Supports shutdown temperature — automatic shutdown upon system overheat
       Звук:
    • Realtek 6-channel codec
    • S/PDIF-out interface
    • 6-channel audio output via software
       Сетевой адаптер:
    • Phy fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps
       Видео:
    • Integrated S3 2D/3D/Video accelerator
      — Shares 8MB to 64MB of the system memory
      — Optimized Shared Memory Architecture (SMA)
      — High quality DVD video playback
    • Supports 3D rendering
    • Supports 2D hardware acceleration
       IDE-контроллер:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       AGP:
    • Supports AGP 4x (1066MB/sec.) bandwidth for 3D graphics applications
       Порты ввода/вывода:
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 mini-DIN-6 PS/2 mouse port
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-15 VGA port
    • 1 DB-25 parallel port
    • 3 audio jacks: line
       Разъемы ввода/вывода:
    • 1 connector for 2 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 S/PDIF-out connector
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 2 fan connectors
       Слоты расширения:
    • 1 AGP slot
    • 3 PCI slots
       Форм-фактор, размеры:
    • 4 layers, microATX form factor
    • 24.4cm (9.6") x 21cm (8.26")

    K8M800-MLV

    K8M800-MLV — первая в мире плата – формфактора uATX для платформы AMD64 со встроенным графическим ускорителем, полноценным набором портов и мультимедийных функций, предназначена для всех категорий пользователей, выбирающих процессоры AMD Athlon64 ™ в сочетании с минимальными размерами платы.
    Плата K8M800-MLV полностью реализует возможности архитектуры VIA K8M800 и поддерживает все процессоры AMD Athlon 64. Встроенный видеоадаптер S3 Graphics UniChrome Pro IGP обеспечивает высококачественную графику и воспроизведение видео в новейших 3D и других цифровых медиаприложениях. Плата поддерживает до 2 ГБ DDR400 и дает возможность использовать видеокарты 8X AGP сторонних производителей. Среди встроенных функций можно отметить 6-канальный звук, сетевую карту 10/100 Mbps Ethernet, SATA RAID (0/1/0+1/ JBOD), 8 USB портов для внешних устройств. Модификация K8M800-MLVF поддерживает два порта IEEE 1394 для передачи данных.

    Технические характеристики:

       Поддерживаемые процессоры:
    • AMD Athlon 64 (3400+)
       Разъем процессора:
    • Socket 754
       Чипсет:
    • VIA® chipset
      North bridge: VIA® K8M800
      – 800MHz HyperTransport interface
      – Integrated UniChrome2 3D/2D graphics controller
      South bridge: VIA® VT8237
      – 16-bit «Ultra V-Link» host controller
      – 533MB/sec. V-Link interface
       Разъемы памяти:
    • Supports single channel (64-bit wide) memory interface
    • Two 184-pin DDR DIMM sockets
    • Supports up to 2GB using PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) and PC3200 (DDR400) unbuffered DDR SDRAM DIMM
       BIOS
    • Award BIOS
    • 4Mbit flash memory
       Управление питанием:
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      – Wake-On-PS/2 Keyboard/Mouse
      – Wake-On-USB Keyboard/Mouse
      – Wake-On-RING (external modem)
      – Wake-On-LAN
      – RTC timer to power-on the system
    • AC power failure recovery
    • CPU Overheat Protection function monitors CPU temperature and fan during system boot-up
       Звук:
    • AC'97 2.2 extension compliant codec
    • S/PDIF-in/out compressed digital output
    • 6-channel audio output via software
       Сетевой адаптер:
    • Fast ethernet LAN Phy supports 10/100M
    • Fully compliant to IEEE 802.3 (10BASE-T) and 802.3u (100BASE-TX) standards
       Видео:
    • Integrated UniChrome2 3D/2D graphics controller
    • Integrated S3 Graphics with 2D/3D acceleration
      — Optimized Unified Memory Architecture (UMA)
      — Supports 16/32/64MB Frame Buffers size
      — 200MHz Graphics Engine Clock
      — 128-bit data buses between north bridge and graphics core
    • Supports 2D acceleration features
    • Supports 3D acceleration features
       IDE-контроллер:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA и RAID контроллер:
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1 and JBOD
       IEEE 1394 (optional):
    • VIA VT6307 PCI 1394 integrated host controller
    • Supports two 100/200/400 Mb/sec ports
       AGP:
    • Supports AGP 8x up to 2133MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
       Порты ввода/вывода:
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 1 DB-15 VGA port
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 IEEE 1394 port (optional)
    • 3 audio jacks: line-out, line-in and mic-in
       Разъемы ввода/вывода:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 connector for 1 external IEEE 1394 port (optional)
    • 1 connector for 1 external serial port
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 S/PDIF-in/out connector
    • 1 IrDA connector
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 2 fan connectors
       Слоты расширения:
    • 1 AGP slot
    • 3 PCI slots
    • 1 CNR slot (optional)
       Форм-фактор, размеры:
    • 4 layers, microATX form factor
    • 24.5cm (9.65") x 23cm (9.06")




    28 июня 2004 Г.

    DFI -

    DFI —

    DFI Inc. 1981 , (ACP). -, .

    , . . , DFI , , . , DFI 2000 . DFI OLDI Trinity Electronics.

    — DFI

    DFI . , , . , DFI . : , , , . , . , , , . DFI . DFI , ISO9001. — .

    DFI

    , DFI ACP .





    ACP — applied computer platforms, (POS, ATM, , , , ).

    DFI

    :


    www.oldi.ru, (095)105-07-00   www.tri-el.ru, common@tri-el.ru

    LanParty

    LANPARTY PRO875B rev. B

    DFI LANPARTY PRO875B rev. B .
    — , . , FrontX . . DFI LANPARTY PRO875B rev. B   — RAID, , LED , IDE , .



    :

        :
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.2GHz+
      — Intel Hyper-Threading Technology
      — FSB: 533MHz and 800MHz
    • Intel® Celeron® processor — 400MHz system data bus
        :
    • Socket 478
       :
    • Intel® 875P chipset
      — Intel® 82875P Memory Controller Hub (MCH)
      — Intel® 82801ER I/O Controller Hub (ICH5)
        :
    • Supports dual channel (128-bit wide) memory interface
      — Each channel supports 2 DIMM sockets
    • Supports up to 4GB system memory
    • Supports Dynamic mode to optimize system performance
    • Supports ECC/non-ECC DIMMs
    • Supports unbuffered DIMMs
       BIOS
    • Award BIOS
    • Genie BIOS provides:
      — CPU/DRAM overclocking in 1MHz stepping
      — AGP/PCI/SATA overclocking
      — CPU/DIMM/AGP overvoltage
    • 4Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-Keyboard/Mouse
       Wake-On-USB Keyboard
       Wake-On-RING (external modem)
       Wake-On-LAN
       RTC timer to power-on the system
    • AC power failure recovery
        :
    • Monitors CPU/system temperature and overheat alarm
    • Monitors CPU/1.5V/5VSB/VBAT/3.3V/5V/12V voltages and failure alarm
    • Monitors CPU/chip/second fan speed and failure alarm
    • Automatic chip/second fans on/off control
    • Read back capability that displays temperature, voltage and fan speed
    • CPU Fan Protection function monitors the CPU fan during system boot-up
    • CPU Temperature Protection function monitors CPU temperature during system boot-up
       :
    • 20-bit stereo full-duplex codec with independent variable sampling rate
    • S/PDIF-in/out interface
    • 6-channel audio output
        :
    • Uses 82547EI Gigabit LAN CSA interface
    • Full duplex support at both 10, 100 and 1000 Mbps
       ATA RAID:
    • Uses HighPoint 372N RAID controller
    • RAID 0, 1, 0+1 and 1.5
       IDE-:
    • Supports ATA/33, ATA/66 and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
       ICH5R Serial ATA RAID :
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1
       AGP:
    • Supports 1.5V AGP 8x (2.13GB/sec.) and AGP 4x (1066MB/sec.) for 3D graphics applications (AGP 2x and 3.3V AGP card are not supported)
    • Supports AGP 3.0 and AGP 2.0 spec.
        /:
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 2 RCA jacks for S/PDIF-in and S/PDIF-out
    • 2 audio jacks for center/bass and rear out
    • 3 audio jacks: line-out, line-in and mic-in
        /:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 connector for an external game/MIDI port
    • 2 internal audio connectors (CD-in and AUX-in)
    • 1 S/PDIF-in/out connector for optical cable connection
    • 1 connector for IrDA interface
    • 2 RAID IDE connectors
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 4 fan connectors for CPU fan, chassis fan, second fan and chip fan
    • 1 diagnostic LED connector for external 4 diagnostic LEDs display
    • EZ touch switches (power switch and reset switch)
        :
    • 1 AGP slot
    • 5 PCI slots
       :
    • PCI 2.2 and AC97 compliant
    • Intel AGP version 3.0
       -, :
    • 4 layers, ATX form factor
    • 30,5cm (12,05") × 24,4cm (9,6")

    LANPARTY NFII-Ultra B

    DFI LANPARTY NFII-Ultra B .
    — .
    , IDE , FrontX .
    , : LAN , SATA RAID RAID 0 RAID 1, 6- , S/PDIF, FireWire, , LED , .


    :

        :
    • AMD Athlon XP 266/333/400MHz FSB
    • AMD Athlon 200/266MHz FSB
    • AMD Duron 200/266MHz FSB
        :
    • Socket A
       :
    • nVIDIA® nForce2 chipset
      — nForce2 Ultra 400
      — nForce2 MCP-T
        :
    • Supports dual channel memory interface
    • Supports up to 3GB memory (unbuffered DIMM)
    • Supports PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) and PC3200 (DDR400) DDR SDRAM DIMM, 2.5V type
    • Three 184-pin DDR SDRAM DIMM sockets
       BIOS
    • Award BIOS, Windows® 95/98/2000/ME/XP Plug and Play compatible
    • Genie BIOS provides:
      — CPU/DRAM/AGP overclocking
      — CPU/AGP/DRAM/Chipset overvoltage
    • 4Mbit flash memory
    • CMOS Reloaded
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      — Wake-On-PS/2 Keyboard/Mouse
      — Wake-On-USB
      — Wake-On-Ring (external modem)
      — Wake-On-LAN
      — RTC timer to power-on the system
    • AC power failure recovery
        :
    • Monitors CPU/system temperature
    • Monitors 12V/5V/3.3V/VBAT(V)/5VSB(V) voltages
    • Monitors CPU/chassis fan speed
    • Read back capability that displays temperature, voltage and fan speed
    • CPU Temperature Protection function monitors CPU temperature during system boot-up
       :
    • Realtek ALC650
    • AC'97 2.2 S/PDIF extension compliant codec
    • Supports Microsoft® DirectSound/DirectSound 3D
    • AC97 supported with full duplex, independent sample rate converter for audio recording and playback
    • S/PDIF-in/out interface
    • 6-channel audio output
        :
    • nVIDIA® nForce2 MCP-T and ICS1893 Phy
      — Full duplex support at both 10 and 100 Mbps
    • Realtek RTL8110S Gigabit LAN
      — Full duplex support at 10, 100 and 1000 Mbps
       IDE-:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA RAID :
    • Silicon Image Sil3114 PCI to Serial ATA controller
    • Supports four SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1
       IEEE 1394:
    • nVIDIA® nForce2 MCP-T and Agere FW803 Phy chips
    • Supports three 100/200/400 Mb/sec ports
       AGP:
    • Supports AGP 8x up to 2132MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
        /:
    • 1 PS/2 mouse port
    • 1 PS/2 keyboard port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 4 USB 2.0/1.1 ports
    • 2 RJ45 LAN ports
    • 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
    • 3 audio jacks: line-out, line-in and mic-in
    • 2 audio jacks for center/bass and rear out
        /:
    • 1 connector for 2 additional external USB 2.0/1.1 ports
    • 3 connectors for 3 external IEEE 1394 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 2 internal audio connectors (AUX-in and CD-in)
    • 1 S/PDIF connector for optical cable connection
    • 1 connector for IrDA interface
    • 4 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 3 fan connectors for CPU fan, chassis fan and 2nd fan
    • 4 diagnostic LEDs
    • 1 diagnostic LED connector for external 4 diagnostic LEDs display
    • EZ touch switches (power switch and reset switch)
        :
    • 1 AGP slot
    • 5 PCI slots
       -, :
    • 4 layers, ATX form factor
    • 30.5cm (12") x 24.4cm (9.64")

    Infinity

    865PE INFINITY rev. B

    INFINITY , /.
    865PE INFINITY rev. B 865PE/ICH5, 4  Serial ATA IDE, Serial ATA RAID, IEEE 1394 FireWire. 865PE INFINITY rev. B DFI — Super PATCH. Intel i865PE, Super PATCH INFINITY , 3Dmark2001SE, PC Mark 2002 Comanche 4.0.
    INFINITY CMOS Reloaded, . CMOS Reloaded , , . 4 , .
    INFINITY .


    :

        :
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.2GHz+
      — Intel Hyper-Threading Technology
      — FSB: 533MHz and 800MHz
    • Intel® Celeron® processor
      — 400MHz system data bus
        :
    • Socket 478
       :
    • Intel® 865PE chipset
      — Intel® 865PE Memory Controller Hub (MCH)
      — Intel® 82801EB I/O Controller Hub (ICH5)
        :
    • Four 184-pin DDR DIMM sockets
    • Supports dual channel (128-bit wide) memory interface
    • Supports up to 4GB system memory
    • Supports non-ECC (x64) DIMM using 128Mb, 256Mb or 512Mb
    • Supports unbuffered DIMMs
       BIOS
    • Award BIOS
    • Genie BIOS provides:
       CPU/DRAM overclocking
       AGP/PCI/SATA overclocking
       CPU/DIMM/AGP overvoltage
    • 4Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-Keyboard/Mouse
       Wake-On-USB Keyboard
       Wake-On-RING (external modem)
       Wake-On-LAN
       RTC timer to power-on the system
    • AC power failure recovery
        :
    • Monitors CPU/system temperature and overheat alarm
    • Monitors CPU/1.5V/5VSB/VBAT/3.3V/5V/12V voltage and failure alarm
    • Monitors CPU/chassis/2nd fan speed and failure alarm
    • Automatic chassis/2nd fans on/off control
    • Read back capability that displays temperature, voltage and fan speed
    • Opened chassis alarm
       :
    • C-Media audio codec
    • 6-channel audio output
    • S/PDIF-in/out interface
        :
    • Realtek RTL8110S Gigabit LAN PCI controller
    • Full duplex support at both 10, 100 and 1000 Mbps
       IDE-:
    • Supports ATA/33, ATA/66 and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
       Serial ATA RAID :
    • Silicon Image Sil3112A PCI to Serial ATA controller
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1
       IEEE 1394:
    • VIA VT6306 PCI 1394 integrated host controller
    • Supports three 100/200/400 Mb/sec ports
       AGP:
    • Supports 1.5V AGP 8x (2.13GB/sec.) and AGP 4x (1066MB/sec.) for 3D graphics applications (AGP 2x and 3.3V AGP card are not supported)
    • Supports AGP 3.0 and AGP 2.0 spec.
        /:
    • 1 PS/2 mouse port
    • 1 PS/2 keyboard port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 4 USB 2.0/1.1 ports
    • 1 1394 port
    • 1 RJ45 LAN port
    • 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
    • 3 audio jacks: line-out, line-in and mic-in
    • 2 audio jacks for center/bass and rear out
        /:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 2 connectors for 2 external IEEE 1394 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 connector for an external game/MIDI port
    • 2 internal audio connectors (CD-in and AUX-in)
    • 1 S/PDIF connector for optical cable connection
    • 1 connector for IrDA interface
    • 4 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power connectors (20-pin and 4-pin 12V)
    • 1 Wake-On-LAN connector
    • 1 opened chassis alarm connector
    • CPU fan, chassis fan and 2nd fan connectors
        :
    • 1 AGP slot
    • 5 PCI slots
       :
    • PCI 2.2 and AC 97 compliant
    • Intel AGP version 3.0
       -, :
    • 4 layers, ATX form factor
    • 30.5cm (12") x 24.4cm (9.6")

    NFII-Ultra INFINITY

    INFINITY , /.
    NFII-Ultra INFINITY nForce2 Ultra 400/MCP-T AMD. DDR400 3GB, 6- , , IEEE 1394 FireWire 4 Serial ATA IDE SATA RAID 0/1/0+1.
    INFINITY CMOS Reloaded, . CMOS Reloaded , , . 4 , .
    INFINITY .


    :

        :
    • AMD Athlon XP 266/333/400MHz FSB
    • AMD Athlon 200/266MHz FSB
    • AMD Duron 200/266MHz FSB
        :
    • Socket A
       :
    • nVIDIA® nForce2 chipset
      - nForce2 Ultra 400
      - nForce2 MCP-T
        :
    • Supports dual channel memory interface
    • Supports up to 3GB memory (unbuffered DIMM)
    • Supports PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) and PC3200 (DDR400) DDR SDRAM DIMM, 2.5V type
    • Three 184-pin DDR SDRAM DIMM sockets
       BIOS
    • Award BIOS, Windows® 95/98/2000/ME/XP Plug and Play compatible
    • Genie BIOS provides:
       CPU/DRAM/AGP overclocking
       CPU/AGP/DRAM/Chipset overvoltage
    • 4Mbit flash memory
    • CMOS Reloaded
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      - Wake-On-PS/2 Keyboard/Mouse
      - Wake-On-USB
      - Wake-On-RING (external modem)
      - Wake-On-LAN
      - RTC timer to power-on the system
    • AC power failure recovery
        :
    • Monitors CPU/system temperature
    • Monitors 12V/5V/3.3V/VBAT(V)/5VSB(V) voltages
    • Monitors CPU/chassis fan speed
    • Read back capability that displays temperature, voltage and fan speed
    • CPU Temperature Protection function monitors CPU temperature during system boot-up
       :
    • Realtek ALC650
    • AC'97 2.2 S/PDIF extension compliant codec
    • Supports Microsoft® DirectSound/DirectSound 3D
    • AC97 supported with full duplex, independent sample rate converter for audio recording and playback
    • S/PDIF-in/out interface
    • 6-channel audio output
        :
    • nVIDIA® nForce2 MCP-T and ICS1893 Phy chips
    • Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible PHY
    • Full duplex support at both 10 and 100 Mbps
       IDE-:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA RAID :
    • Silicon Image Sil3114 PCI to Serial ATA controller
    • Supports four SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1
       IEEE 1394:
    • nVIDIA® nForce2 MCP-T and Agere FW803 Phy chips
    • Supports three 100/200/400 Mb/sec ports
       AGP:
    • Supports AGP 8x up to 2132MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
        /:
    • 1 PS/2 mouse port
    • 1 PS/2 keyboard port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
    • 3 audio jacks: line-out, line-in and mic-in
    • 2 audio jacks for center/bass and rear out
        /:
    • 1 connector for 2 additional external USB 2.0/1.1 ports
    • 3 connectors for 3 external IEEE 1394 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 2 internal audio connectors (AUX-in and CD-in)
    • 1 S/PDIF connector for optical cable connection
    • 1 connector for IrDA interface
    • 4 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 3 fan connectors for CPU fan, chassis fan and 2nd fan
        :
    • 1 AGP slot
    • 5 PCI slots
       -, :
    • 4 layers, ATX form factor
    • 30.5cm (12") x 24.5cm (9.64")

    General

    Discreet Intel platforms

    PS83-BL/PS85-BL rev. B

    :

        :
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.2GHz+
      — Intel Hyper-Threading Technology
      — FSB: 533MHz and 800MHz
    • Intel® Celeron® processor
      — 400MHz system data bus
        :
    • Socket 478
       :
    • Intel® 865PE chipset (PS83-BL)
      - Intel® 865PE Memory Controller Hub (MCH)
      - Intel® 82801EB I/O Controller Hub (ICH5)
    • Intel® 865G chipset (PS85-BL)
      - Intel® 865G Graphics Memory Controller Hub (GMCH)
      - Intel® 82801EB I/O Controller Hub (ICH5)
        :
    • Supports dual channel (128-bit wide) memory interface
      - Each channel supports 2 DIMM sockets
    • Supports up to 4GB system memory
    • Synchronous operation with processor system bus
      - PC2100/PC2700/PC3200 (DDR266/DDR333/DDR400) with 800MHz FSB CPU.
      DDR333 will run at 320MHz memory frequency when used with 800MHz FSB CPU.
      - PC2100/PC2700 (DDR266/DDR333) with 533MHz FSB CPU
      - PC2100 (DDR266) with 400MHz FSB CPU
    • Supports non-ECC (x64) DIMM using 128Mb, 256Mb or 512Mb
    • Supports unbuffered DIMMs
       BIOS
    • Award BIOS
    • 4Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-Keyboard/Mouse
       Wake-On-USB Keyboard
       Wake-On-RING (external modem)
       Wake-On-LAN
       RTC timer to power-on the system
    • AC power failure recovery
        :
    • Monitors CPU/system temperature and overheat alarm
    • Monitors CPU/1.5V/5VSB/VBAT/3.3V/5V/12V voltages and failure alarm
    • Monitors CPU/chassis/second fan speed and failure alarm
    • Automatic chassis/second fans on/off control
    • Read back capability that displays temperature, voltage and fan speed
    • Opened chassis alarm
       :
    • 20-bit stereo full-duplex codec with independent variable sampling rate
    • S/PDIF-in/out interface
    • 6-channel audio output
        :
    • Uses Realtek RTL8101L fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps
        (PS85-BL):
    • Graphics memory
      — Shares 1MB/4MB/8MB/16MB of the system memory in DOS mode
      — Uses Dynamic Video Memory Technology (DVMT) in Windows mode
    • Graphics controller
      — Core frequency of 266MHz
    • 2D graphics features
      — Optimized 256-bit BLT engine
    • 3D graphics features
      — 200 megapixels/sec fill rate
      — Maximum 3D resolution: 1600x1200x32 @ 85Hz
       IDE-:
    • Supports ATA/33, ATA/66 and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
       Serial ATA :
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
       AGP:
    • Supports 1.5V AGP 8x (2.13GB/sec.) and AGP 4x (1066MB/sec.) for 3D graphics applications (AGP 2x and 3.3V AGP card are not supported)
    • Supports AGP 3.0 and AGP 2.0 spec.
        /:
    • 2 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 2 DB-9 serial ports
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 game port
    • 3 audio jacks: line-out, line-in and mic-in
        /:
    • 3 connectors for 6 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 surround connector
    • 1 S/PDIF-in/out connector
    • 1 connector for IrDA interface
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 1 opened chassis alarm connector
    • 3 fan connectors for CPU fan, chassis fan and second fan
        :
    • 1 AGP slot
    • 5 PCI slots
       :
    • PCI 2.2 and AC 97 compliant
    • Intel AGP version 3.0
       -, :
    • 4 layers, ATX form factor
    • 30.5cm (12") x 21cm (8.26")

    848P-AL rev. C


    :

        :
    • Intel® Pentium®4 (Prescott and Northwood) processor up to 3.2GHz+
      Intel Hyper-Threading Technology
      FSB: 533MHz and 800MHz
    • Intel® Celeron® processor
      400MHz system data bus
        :
       Socket 478
       :
    • Intel® 848P chipset
      — Intel® 848P Memory Controller Hub (MCH)
      — Intel® 82801EB I/O Controller Hub (ICH5)
        :
    • Two 184-pin DDR DIMM sockets
    • Supports up to 2GB system memory
    • Synchronous operation with processor system bus
       PC2100/PC2700/PC3200 (DDR266/DDR333/DDR400) with 800MHz FSB CPU. DDR333 will run at 320MHz memory frequency when used with 800MHz FSB CPU.
       PC2100/PC2700 (DDR266/DDR333) with 533MHz FSB CPU
       PC2100 (DDR266) with 400MHz FSB CPU
    • Supports non-ECC (x64) DIMM using 128Mb, 256Mb or 512Mb.
    • Supports unbuffered DIMMs
       BIOS
    • Award BIOS
    • 4Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-Keyboard/Mouse
       Wake-On-USB Keyboard
       Wake-On-RING (external modem)
       Wake-On-LAN
       RTC timer to power-on the system
    • AC power failure recovery
       :
    • 20-bit stereo full-duplex codec with independent variable sampling rate
    • 6-channel audio output
        :
    • Uses Realtek RTL8101L fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps
       IDE-:
    • Supports ATA/33, ATA/66 and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
       Serial ATA :
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
       AGP:
    • Supports 1.5V AGP 8x (2.13GB/sec.) and AGP 4x (1066MB/sec.) for 3D graphics applications (AGP 2x and 3.3V AGP card are not supported)
    • Supports AGP 3.0 and AGP 2.0 spec.
        /:
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
    • 3 audio jacks: line-out, line-in and mic-in
    • 2 audio jacks for center/bass and rear out
        /:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 S/PDIF connector for optical cable connection
    • 1 connector for IrDA interface
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 2 fan connectors for CPU fan and chassis fan
        :
    • 1 AGP slot
    • 5 PCI slots
       :
    • PCI 2.2 and AC 97 compliant
    • Intel AGP version 3.0
       -, :
    • 4 layers, ATX form factor
    • 29.5cm (11.61") x 19cm (7.48")

    NB78-BL/B


    :

        :
    • Intel® Pentium® 4 Processor with Hyper-Threading Technology — 533MHz FSB
    • Intel® Pentium® 4 processor (478-pin)
      533MHz system data bus
      400MHz system data bus
    • Intel® Celeron® processor (478-pin)
      400MHz system data bus
        :
    • Socket 478
       :
    • Intel® 845PE chipset
      — Intel® 845PE Memory Controller Hub (MCH)
      — Intel® 82801DB I/O Controller Hub (ICH4)
        :
    • Two 184-pin DDR SDRAM DIMM sockets
    • 2.5V unbuffered PC1600 (DDR200), PC2100 (DDR266) or PC2700 (DDR333) DDR SDRAM DIMM
      — DDR333 is supported only when using a 533MHz FSB processor
    • Supports maximum of 2GB system memory using 64Mbit, 128Mbit, 256Mbit or 512Mbit technology
      — Double-sided x16 DDR SDRAM DIMM is not supported
       BIOS
    • Award BIOS, Windows® 98SE/2000/ME/XP Plug and Play compatible
    • 2Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-PS/2 Keyboard/Mouse
       Wake-On-USB Keyboard
       Wake-On-LAN
       RTC timer to power-on the system
       :
    • 16-bit stereo full-duplex codec with independent variable sampling rate
    • 6-channel audio output
        :
    • Uses Realtek RTL8100C fast ethernet controller
    • Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible PHY
       IDE-:
    • Supports ATA/33, ATA/66 and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
       AGP:
    • Supports 1.5V AGP 4x with up to 1066MB/sec. bandwidth for 3D graphics applications
        /:
    • 2 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 2 DB-9 serial ports
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 game/MIDI port
    • 3 audio jacks: line-out, line-in and mic-in
        /:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 connector for IrDA interface
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 2 connectors for CPU fan and chassis fan
        :
    • 1 AGP slot
    • 5 PCI slots
       :
    • PCI 2.2 and AC 97 compliant
    • Intel AGP version 2.0
       -, :
    • 4 layers, ATX form factor
    • 29.5cm (11.6") x 19cm (7.48")

    PT880-ALF/PT800-AL

    VIA PT880 PT800, PT880-ALF PT800-AL, , P4, . PT880-ALF PT800-AL VIA PT880/PT800, FSB 800, Intel Hyper-Threading, DDR400 8X AGP. 6- , 10/100 Mbps Ethernet, SATA RAID (0/1/ JBOD) , IEEE 1394 ( PT800-AL) 8 USB .

    :

        :
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.06GHz+
      — Intel Hyper-Threading Technology
      — FSB: 533MHz and 800MHz
    • Intel® Celeron® processor
      — 400MHz system data bus
        :
    • Socket 478
       :
    • VIA® chipset
      North bridge: VIA® PT880 (PT880-ALF). Advanced high performance 128-bit DDR DRAM controller
       North bridge: VIA® PT800 (PT800-AL)
       South bridge: VIA® VT8237
        :
    • Supports dual channel (128-bit wide) memory interface (PT880-ALF)
    • Three 184-pin DDR DIMM sockets
    • Supports up to 3GB using PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) and PC3200 (DDR400) unbuffered DDR SDRAM DIMM, 2.6V type
       BIOS
    • Award BIOS
    • 4Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-PS/2 Keyboard/Mouse
       Wake-On-USB Keyboard/Mouse
       Wake-On-Ring (external modem)
       Wake-On-LAN
       RTC timer to power-on the system
    • AC power failure recovery
       :
    • AC'97 2.2 extension compliant codec
    • S/PDIF-in/out compressed digital output
    • 6-channel audio output via software
        :
    • Phy fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps
       IDE-:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA RAID :
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0, RAID 1 and JBOD
       IEEE 1394:
    • VIA VT6307 PCI 1394 integrated host controller (optional for PT800-AL)
    • Supports two 100/200/400 Mb/sec ports
       AGP:
    • Supports AGP 8x up to 2133MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
        /:
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 2 S/PDIF RCA jacks (S/PDIF-in and S/PDIF-out)
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 IEEE 1394 port (optional for PT800-AL)
    • 3 audio jacks: line-out, line-in and mic-in
        /:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 connector for 1 external IEEE 1394 port
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 2 fan connectors
        :
    • 1 AGP slot
    • 5 PCI slots
       -, :
    • 4 layers, ATX form factor
    • 30.5cm (12") x 22cm (8.66")

    Integrated Intel platforms

    PS35-BL/865GV-MLV/865PE-ML

    PS35-BL, 865GV-MLV 865PE-ML Intel i865x, mATX. PS35-BL, 865GV-MLV, 865PE-ML i865x (865G, 865GV 865PE ), FSB 800, Intel Hyper-Threading, Pentium® 4 (Prescott and Northwood) 3.2GHz+. PS35-BL 865GV-MLV 865PE-ML - Intel Extreme Graphics 2 ( ). i865GV 865GV-MLV AGP.

    :

        :
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.2GHz+
      Intel Hyper-Threading Technology
      FSB: 533MHz and 800MHz
    • Intel® Celeron® processor
      400MHz system data bus
        :
    • Socket 478
       :
    • Intel® 865G chipset (PS35-BL)
      - Intel® 865G Graphics Memory Controller Hub (GMCH)
      - Intel® 82801EB I/O Controller Hub (ICH5)
    • Intel® 865GV chipset (865GV-MLV)
      - Intel® 865GV Graphics Memory Controller Hub (GMCH)
      - Intel® 82801EB I/O Controller Hub (ICH5)
    • Intel® 865PE chipset (865PE-ML)
      - Intel® 865PE Memory Controller Hub (MCH)
      - Intel® 82801EB I/O Controller Hub (ICH5)
        :
    • Two 184-pin DDR DIMM sockets
    • Supports dual channel (128-bit wide) memory interface
    • Supports up to 2GB system memory
    • Supports non-ECC (x64) DIMM using 128Mb, 256Mb or 512Mb
    • Supports unbuffered DIMMs
       BIOS
    • Award BIOS
    • 4Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-Keyboard/Mouse
       Wake-On-USB Keyboard
       Wake-On-RING (external modem)
       Wake-On-LAN
       RTC timer to power-on the system
    • AC power failure recovery
        :
    • Supports shutdown temperature - automatic shutdown upon system overheat
       :
    • 20-bit stereo full-duplex codec with independent variable sampling rate
    • 6-channel audio output
    • S/PDIF-in/out interface
        :
    • Uses Realtek RTL8101L fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps
        (PS35-BL/865GV-MLV):
    • Graphics memory
      - Shares 1MB/8MB/16MB of the system memory in DOS mode
      - Uses Dynamic Video Memory Technology (DVMT) in  Windows mode
    • Graphics controller
      - Core frequency of 266MHz
    • 2D graphics features
      - Optimized 256-bit BLT engine
    • 3D graphics features
      - 200 megapixels/sec fill rate
      - Maximum 3D resolution: 1600x1200x32 @ 85Hz
       IDE-:
    • Supports ATA/33, ATA/66 and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
       Serial ATA :
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
       AGP (PS35-BL/865PE-ML):
    • Supports AGP 3.0 and AGP 2.0 spec.
    • AGP 8x data rate provides a theoretical maximum bandwidth of 2.13GB/sec.
    • Supports 1.5V AGP 4x with up to 1066MB/sec. bandwidth for 3D graphics applications (3.3V AGP card is not supported)
        /:
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-15 VGA port
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 3 audio jacks: line-out, line-in and mic-in
        /:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 connector for 1 external serial port
    • 1 connector for 1 external game/MIDI port
    • 1 connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 surround connector
    • 1 S/PDIF-in/out connector
    • 1 connector for IrDA interface
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 3 connectors for CPU fan, chassis fan and second fan
        :
    • 1 AGP slot (PS35-BL/865PE-ML)
    • 3 PCI slots
       :
    • PCI 2.2 and AC 97 compliant
    • Intel AGP version 3.0
       -, :
    • 4 layers, microATX form factor
    • 24.5cm (9.64") x 20cm (7.87")

    845GV-MLV

    :

        :
    • Intel® Pentium® 4 Processor with Hyper-Threading Technology — 533MHz FSB
    • Intel® Pentium® 4 processor (478-pin)
      — 533MHz system data bus
      — 400MHz system data bus
    • Intel® Celeron® processor (478-pin)
      — 400MHz system data bus
        :
    • Socket 478
       :
    • Intel® 845GV chipset
      — Intel® 845GV B1 stepping Graphics Memory Controller Hub (GMCH)
      — Intel® 82801DB I/O Controller Hub (ICH4)
        :
    • Two 184-pin DDR DIMM sockets
    • 2.5V unbuffered PC1600 (DDR200), PC2100 (DDR266) or PC2700 (DDR333) DDR SDRAM DIMM
    • Supports maximum of 2GB system memory using 64Mbit, 128Mbit, 256Mbit or 512Mbit technology
    • Double-sided x16 DDR SDRAM DIMM is not supported
       BIOS
    • Award BIOS Windows® 98SE/2000/ME/XP Plug and Play compatible
    • Supports SCSI sequential boot-up
    • Flash EPROM for easy BIOS upgrades
    • Supports DMI 2.0 function
    • 2Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-Keyboard
       Wake-On-USB
       Wake-On-RING (external modem)
       :
    • Realtek ALC101 audio codec
    • 20-bit stereo full-duplex codec with independent variable sampling rate
    • High quality differential CD input
    • True stereo line level outputs
    • 2-channel audio output
        :
    • Uses Realtek RTL8101L fast ethernet controller
    • Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible PHY

    • Graphics memory
      — Shares 512K/1MB/8MB of the system memory in DOS mode
      — Uses Dynamic Video Memory Technology (DVMT) in Windows mode
    • Graphics controller
      — Core frequency of 200MHz
      — 350MHz integrated 24-bit RAMDAC
    • 2D graphics features
      — Optimized 256-bit BLT engine
    • 3D graphics features
      — 200 megapixels/sec fill rate
    • Software drivers
      — Windows® 98SE/2000/ME/XP
      — Windows NT® 4.0
       IDE-:
    • Supports ATA/33, ATA/66, and ATA/100 hard drives
    • PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
        /:
    • 2 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-15 VGA port
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 game port
    • 3 audio jacks: line-out, line-in and mic-in
        /:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 connector for IrDA interface
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 2 fan connectors for CPU fan and chassis fan
        :
    • 3 PCI slots
       :
    • PCI 2.2 and AC 97 compliant
       -, :
    • 4 layers, microATX form factor
    • 24.4cm (9.61") x 24.4cm (9.61")

    661FX-MLV rev. C

    SiS 661FX- Intel P4. 661FX-MLV rev. C SiS 661FX Intel Prescott. , FSB 800, Intel Hyper-Threading, DDR 400 8 X AGP. SiS Real 256 E, 6- , 10/100 Mbps Ethernet, SATA RAID (0/1/0+1/ JBOD ) 8  USB 2.0 .

    :

        :
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.06GHz
      — Intel Hyper-Threading Technology
      — FSB: 533MHz and 800MHz
    • Intel® Celeron® processor
      — 400MHz system data bus
        :
    • Socket 478
       :
    • SiS® chipset
      — North bridge: SiS® 661FX
      — South bridge: SiS® 964
        :
    • Two 184-pin DDR DIMM sockets
    • Supports 4 banks up to 2GB using PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) or PC3200 (DDR400) unbuffered DDR SDRAM DIMM, 2.6V type
      — 16Mb, 64Mb, 128Mb, 256Mb and 512Mb SDRAM technology
      with page size from 2KB up to 16KB
       BIOS
    • Award BIOS
    • 4Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-PS/2 Keyboard/Mouse
       Wake-On-USB Keyboard/Mouse
       Wake-On-RING (external modem)
       Wake-On-LAN
       RTC timer to power-on the system
    • AC power failure recovery
       :
    • AC'97 2.2 extension compliant codec
    • S/PDIF-in/out interface
    • 6-channel audio output
        :
    • Phy fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps

    • Bi-directional 16-bit data bus
    • Performs 1GB/s bandwidth in 133MHz x 4 mode
    • 3D graphics accelerator
      — Built-in high performance 256-bit 3D engine
      — Supports Ultra-AGPII up to 2.7GB/s bandwidth
      — Up to 166MHz 3D engine clock speed
    • 2D graphics accelerator
       IDE-:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA RAID :
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0, RAID 1 and JBOD
       AGP:
    • Supports AGP 8x up to 2132MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
        /:
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-15 VGA port
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 3 audio jacks: line-out, line-in and mic-in
        /:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 S/PDIF-in/out connector
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • CPU fan and chassis fan connectors
        :
    • 1 AGP slot
    • 3 PCI slots
       -, :
    • 4 layers, microATX form factor
    • 24.4cm (9.6") x 20cm (7.87")

    P4M266A-MLV

    :

        :
    • Intel® Pentium® 4 (Prescott and Northwood) processor up to 3.06GHz
      — Intel Hyper-Threading Technology
      — FSB: 400MHz and 533MHz
    • Intel® Celeron® processor
      — 400MHz system data bus
        :
    • Socket 478
       :
    • VIA® chipset
      — North bridge: VIA® P4M266A
      — South bridge: VIA® VT8235CD
        :
    • Two 184-pin DDR DIMM sockets
    • Supports up to 2GB using PC1600 (DDR200) or PC2100 (DDR266) unbuffered DDR SDRAM DIMM, 2.5V type
    • Uses x8/x16 512MB technology
       BIOS
    • Award BIOS
    • 4Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-PS/2 Keyboard
       Wake-On-USB Keyboard/Mouse
       Wake-On-Ring
       Wake-On-LAN
       RTC timer to power-on the system
    • AC power failure recovery
       :
    • Supports Microsoft® DirectSound/DirectSound 3D
    • S/PDIF-in/out compressed digital output
    • 6-channel audio output via software
        :
    • Integrated LAN controller
    • Full duplex support at both 10 and 100 Mbps
       :
    • Full featured Accelerated Graphics Port (AGP) controller
    • High resolution CRT RGB interface
    • Integrated Savage8 2D/3D graphics controller and video accelerator
      — Optimized Shared Memory Architecture (SMA)
      — 8/16/32MB frame buffer using system memory
    • 3D rendering features
    • 2D hardware acceleration features
    • Motion video architecture
    • Full software support
       IDE-:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       AGP:
    • Supports AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications.
        /:
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 RJ45 LAN port
    • 2 USB 2.0/1.1 ports
    • 1 DB-9 serial port
    • 1 DB-15 VGA port
    • 1 DB-25 parallel port
    • 1 game/MIDI port
    • 3 audio jacks: line-out, line-in and mic-in
        /:
    • 1 connector for 2 additional external USB 2.0/1.1 ports
    • 1 connector for 1 external serial port
    • 1 front audio connector for external line-out and mic-in jacks
    • 2 internal audio connectors (AUX-in and CD-in)
    • 1 S/PDIF-in/out connector
    • 1 connector for IrDA interface
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 2 fan connectors
        :
    • 1 AGP slot
    • 3 PCI slots
       -, :
    • 4 layers, ATX form factor
    • 24.3cm (9.56") x 22cm (8.66")

    AMD platforms

    NFII-Ultra AL

    DFI NFII-Ultra AL nForce2 Ultra 400 . NFII-Ultra AL AMD.


    :

        :
    • AMD Athlon(TM) XP 266/333/400MHz FSB
    • AMD Athlon(TM) 200/266MHz FSB
        :
    • Socket A
       :
    • nVIDIA® nForce2 chipset
      — nForce2 Ultra 400
      — nForce2 MCP
        :
    • Supports dual channel memory interface
    • Supports up to 3GB memory (unbuffered DIMM)
    • Supports PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) and PC3200 (DDR400) DDR SDRAM DIMM, 2.5V type
    • Three 184-pin DDR SDRAM DIMM sockets
       BIOS
    • Award BIOS, Windows® 95/98/2000/ME/XP Plug and Play compatible
    • Genie BIOS provides:
      CPU/DRAM overclocking
      AGP/PCI/SATA overclocking
       CPU/DIMM/AGP overvoltage
    • Flash EPROM for easy BIOS upgrades
    • 4Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-Keyboard/Mouse
       Wake-On-USB
       Wake-On-RING (external modem)
       Wake-On-LAN
       RTC timer to power-on the system
        :
    • Monitors CPU/system temperature
    • Monitors 12V/5V/3.3V/VBAT(V)/5VSB(V) voltages
    • Monitors CPU/chassis fan speed
    • Read back capability that displays temperature, voltage and fan speed
    • CPU Temperature Protection function monitors CPU temperature during system boot-up
       :
    • AC'97 2.2 S/PDIF extension compliant codec
    • 6-channel audio output
        :
    • nVIDIA® nForce2 MCP and ICS1893 Phy chips
    • Integrated IEEE 802.3, 10BASE-T and 100BASE-TX compatible PHY
       IDE-:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA:
    • Uses Marvell 88i8030 chip
    • Supports one SATA (Serial ATA) interface which is compliant with SATA 1.0 specification (1.5Gbps interface)
       AGP:
    • Supports AGP 8x up to 2132MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
        /:
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 2 DB-9 serial ports
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 3 audio jacks: line-out, line-in and mic-in
        /:
    • 1 connector for 2 additional external USB 2.0/1.1 ports
    • 1 connector for 1 external game/MIDI port
    • 1 front audio connector for external line-out and mic-in jacks
    • 2 internal audio connectors (AUX-in and CD-in)
    • 1 4-channel audio output connector
    • 1 S/PDIF-in/out connector
    • 1 connector for IrDA interface
    • 1 connector for serial ATA interface
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 3 fan connectors for CPU fan, chassis fan and second fan
        :
    • 1 AGP slot, that support 8x/4x AGP
    • 5 PCI slots
       -, :
    • 4 layers, ATX form factor
    • 30.5cm (12") x 24.5cm (9.64")

    KT600-AL

    :

        :
    • AMD Athlon(TM)XP 266/333/400MHz FSB
    • AMD AthlonTM 200/266MHz FSB
    • AMD DuronTM 200/266MHz FSB
        :
    • Socket A
       :
    • VIA® chipset
      North bridge: VIA® KT600
      South bridge: VIA® VT8237
        :
    • Three 184-pin DDR SDRAM DIMM sockets
    • Supports up to 3GB memory (unbuffered DIMM)
    • Uses PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) or PC3200 (DDR400) DDR SDRAM DIMM, 2.5V type
       BIOS
    • Award BIOS
    • 2Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-PS/2 Keyboard/Mouse
       Wake-On-USB
       Wake-On-LAN
       Wake-On-Ring (for external modem)
       RTC timer to power-on the system
        :
    • Monitors CPU/system temperature and overheat alarm
    • Monitors 12V/+5V/3.3V/CPU/VBAT(V)/5VSB(V) voltages
    • Monitors CPU/system fan speed
    • Read back capability that displays temperature, voltage and fan speed
    • CPU Fan Protection function during system boot-up
    • CPU Temperature Protection function during system boot-up
       :
    • AC'97 2.2 S/PDIF extension compliant codec
    • S/PDIF-in/out compressed digital output
    • 6-channel audio output
        :
    • VIA 6103 LAN Phy
    • Full duplex support at both 10 and 100 Mbps
       USB:
    • Supports 8 USB 2.0 (480Mb/second) / USB 1.1 (12Mb/second) interfaces.
       IDE-:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA RAID :
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1 and JBOD
       AGP:
    • Supports AGP 8x up to 2133MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
        /:
    • 1 PS/2 mouse port
    • 1 PS/2 keyboard port
    • 4 USB 2.0/1.1 ports
    • 1 LAN port
    • 2 DB-9 serial ports
    • 1 DB-25 parallel port
    • 3 audio jacks: line-out, line-in and mic-in
        /:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 2 internal audio connectors (AUX-in and CD-in)
    • 1 surround connector
    • 1 S/PDIF-in/out connector
    • 2 SATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 1 ATX power supply connector
    • 2 fan connectors
        :
    • 1 AGP slot
    • 5 PCI slots
       -, :
    • 4 layers, ATX form factor
    • 30.5cm (12") x 20cm (7.87")

    AD77

    AD77 VIA KT400A .


    :

        :
    • AMD AthlonTM XP 266/333MHz FSB
    • AMD AthlonTM 200/266MHz FSB
    • AMD DuronTM 200MHz FSB
        :
    • Socket A
       :
    • VIA KT400A and VT8235CD
        :
    • Supports up to 3GB memory (unbuffered DIMM)
    • Uses PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) or PC3200 (DDR400) DDR SDRAM DIMM, 2.5V type
    • Three 184-pin DDR SDRAM DIMM sockets
       BIOS
    • Award BIOS
    • Windows 95/98/2000/ME/XP Plug and Play compatible
    • 2Mbit flash memory
        :
    • Supports ACPI specification and OS Directed Power Management
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
      — Wake-On-Ring (external and internal modem)
      — Wake-On-LAN
      — RTC timer to power-on the system
        :
    • Monitors CPU/system temperature and overheat alarm
    • Monitors +12V/-12V/+5V/-5V/3.3V/CPU/VBAT(V)/5VSB(V) voltages and failure alarm
    • Monitors CPU/chassis fan speed and failure alarm
    • Automatic chassis fan on/off control
    • Read back capability that displays temperature, voltage and fan speed
    • CPU Fan Protection function during system boot-up
    • CPU Temperature Protection function during system boot-up
    • CPU Overclocking function by 1MHz stepping
       :
    • AC97 compliant
    • 6-channel audio output
       IDE-:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
       AGP:
    • Supports AGP 8x up to 2133MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications.
        /:
    • 2 USB 2.0/1.1 ports
    • 2 DB-9 serial ports
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 game/MIDI port
    • 3 audio jacks: line-out, line-in and mic-in
        /:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 connector for external line-out and mic-in jacks
    • 2 internal audio connectors (AUX-in and CD-in)
    • 1 S/PDIF-in/out connector
    • 1 connector for IrDA interface
    • 2 IDE connectors
    • 1 floppy connector
    • 1 ATX power supply connector
    • 1 Wake-On-LAN connector
    • 1 Wake-On-Ring connector
    • CPU fan, chassis fan and second chassis fan connectors
        :
    • 1 AGP slot
    • 5 PCI slots
       -, :
    • 4 layers, ATX form factor
    • 30.5cm (12") x 20cm (7.87")

    KM400-MLV

    :

        :
    • AMD AthlonTM XP 266/333MHz FSB
    • AMD AthlonTM 266MHz FSB
    • AMD DuronTM 200/266MHz FSB
        :
       Socket A
       :
    • VIA® chipset
      North bridge: VIA KM400
      South bridge: VIA VT8237
        :
    • Two 184-pin DDR SDRAM DIMM sockets
    • Supports up to 2GB memory using PC2100 (DDR266) and PC2700 (DDR333) DDR SDRAM DIMM, 2.5V type
       BIOS
    • Award BIOS
    • 2Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-PS/2 Keyboard/Mouse
       Wake-On-USB
       Wake-On-LAN
       Wake-On-Ring (for external modem)
       RTC timer to power-on the system
    • AC power failure recovery
        :
    • Monitors CPU temperature during system boot-up
    • Supports shutdown temperature — automatic shutdown upon system overheat
       :
    • Realtek 6-channel codec
    • S/PDIF-out interface
    • 6-channel audio output
        :
    • Phy fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps
       :
    • Integrated S3 2D/3D/Video accelerator
      — Shares 8MB to 64MB of the system memory
      — Optimized Shared Memory Architecture (SMA)
      — High quality DVD video playback
    • Supports 3D rendering features
    • Supports 2D hardware acceleration
    • Supports motion video architecture
       IDE-:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA RAID :
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1 and JBOD
       AGP:
    • Supports AGP 8x (2.13GB/sec.) and AGP 4x (1066MB/sec.)bandwidth for 3D graphics applications
        /:
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-15 VGA port
    • 1 DB-25 parallel port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 mini-DIN-6 PS/2 mouse port
    • 3 audio jacks: line-out, line-in and mic-in
        /:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 S/PDIF-out connector
    • 2 SATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 2 fan connectors for CPU fan and chassis fan
        :
    • 1 AGP slot
    • 3 PCI slots
       -, :
    • 4 layers, microATX form factor
    • 24.4cm (9.6") x 21cm (8.26")

    KM266Pro-MLV

    VIA KM266Pro AMD. KM266Pro-MLV VIA KM266Pro AMD Athlon XP Duron. , FSB333, DDR333 4X AGP. UniChrome, 6- , 10/100 Mbps Ethernet 6 USB 2.0 . DFI KM266Pro-MLV — / AMD.

    :

        :
    • AMD AthlonTM XP 266/333MHz FSB
    • AMD AthlonTM 266MHz FSB
    • AMD DuronTM 200/266MHz FSB
        :
    • Socket A
       :
    • VIA® chipset
       North bridge: VIA® KM266Pro
       South bridge: VIA® VT8235
        :
    • Two 184-pin DDR SDRAM DIMM sockets
    • Supports up to 2GB memory using PC2100 (DDR266) and PC2700 (DDR333) DDR SDRAM DIMM, 2.5V type
       BIOS
    • Award BIOS
    • 2Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
       Wake-On-Events include:
       Wake-On-PS/2 Keyboard/Mouse
       Wake-On-USB
       Wake-On-LAN
       Wake-On-Ring (for external modem)
       RTC timer to power-on the system
    • AC power failure recovery
        :
    • Monitors CPU temperature during system boot-up
    • Supports shutdown temperature — automatic shutdown upon system overheat
       :
    • Realtek 6-channel codec
    • S/PDIF-out interface
    • 6-channel audio output via software
        :
    • Phy fast ethernet controller
    • Full duplex support at both 10 and 100 Mbps
       :
    • Integrated S3 2D/3D/Video accelerator
      — Shares 8MB to 64MB of the system memory
      — Optimized Shared Memory Architecture (SMA)
      — High quality DVD video playback
    • Supports 3D rendering
    • Supports 2D hardware acceleration
       IDE-:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       AGP:
    • Supports AGP 4x (1066MB/sec.) bandwidth for 3D graphics applications
        /:
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 mini-DIN-6 PS/2 mouse port
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 DB-9 serial port
    • 1 DB-15 VGA port
    • 1 DB-25 parallel port
    • 3 audio jacks: line
        /:
    • 1 connector for 2 additional external USB 2.0/1.1 ports
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 S/PDIF-out connector
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 2 fan connectors
        :
    • 1 AGP slot
    • 3 PCI slots
       -, :
    • 4 layers, microATX form factor
    • 24.4cm (9.6") x 21cm (8.26")

    K8M800-MLV

    K8M800-MLV —   uATX AMD64 , ,   , AMD Athlon64 ™ .
    K8M800-MLV VIA K8M800 AMD Athlon 64. S3 Graphics UniChrome Pro IGP 3D   . 2  DDR400 8X AGP . 6- , 10/100 Mbps Ethernet, SATA RAID (0/1/0+1/ JBOD), 8 USB . K8M800-MLVF IEEE 1394 .


    :

        :
    • AMD Athlon 64 (3400+)
        :
    • Socket 754
       :
    • VIA® chipset
      North bridge: VIA® K8M800
       800MHz HyperTransport interface
       Integrated UniChrome2 3D/2D graphics controller
      South bridge: VIA® VT8237
       16-bit «Ultra V-Link» host controller
       533MB/sec. V-Link interface
        :
    • Supports single channel (64-bit wide) memory interface
    • Two 184-pin DDR DIMM sockets
    • Supports up to 2GB using PC1600 (DDR200), PC2100 (DDR266), PC2700 (DDR333) and PC3200 (DDR400) unbuffered DDR SDRAM DIMM
       BIOS
    • Award BIOS
    • 4Mbit flash memory
        :
    • Supports ACPI STR (Suspend to RAM) function
    • Wake-On-Events include:
       Wake-On-PS/2 Keyboard/Mouse
       Wake-On-USB Keyboard/Mouse
       Wake-On-RING (external modem)
       Wake-On-LAN
       RTC timer to power-on the system
    • AC power failure recovery
    • CPU Overheat Protection function monitors CPU temperature and fan during system boot-up
       :
    • AC'97 2.2 extension compliant codec
    • S/PDIF-in/out compressed digital output
    • 6-channel audio output via software
        :
    • Fast ethernet LAN Phy supports 10/100M
    • Fully compliant to IEEE 802.3 (10BASE-T) and 802.3u (100BASE-TX) standards
       :
    • Integrated UniChrome2 3D/2D graphics controller
    • Integrated S3 Graphics with 2D/3D acceleration
      — Optimized Unified Memory Architecture (UMA)
      — Supports 16/32/64MB Frame Buffers size
      — 200MHz Graphics Engine Clock
      — 128-bit data buses between north bridge and graphics core
    • Supports 2D acceleration features
    • Supports 3D acceleration features
       IDE-:
    • Supports ATA/33, ATA/66, ATA/100 and ATA/133 hard drives
    • UDMA Modes 3, 4, 5 and 6 Enhanced IDE (data transfer rate up to 133MB/sec.)
       Serial ATA RAID :
    • Supports two SATA (Serial ATA) interfaces which are compliant with SATA 1.0 specification (1.5Gbps interface)
    • Supports RAID 0 and RAID 1 and JBOD
       IEEE 1394 (optional):
    • VIA VT6307 PCI 1394 integrated host controller
    • Supports two 100/200/400 Mb/sec ports
       AGP:
    • Supports AGP 8x up to 2133MB/sec. and AGP 4x up to 1066MB/sec. bandwidth for 3D graphics applications
        /:
    • 1 mini-DIN-6 PS/2 mouse port
    • 1 mini-DIN-6 PS/2 keyboard port
    • 1 DB-9 serial port
    • 1 DB-25 parallel port
    • 1 DB-15 VGA port
    • 4 USB 2.0/1.1 ports
    • 1 RJ45 LAN port
    • 1 IEEE 1394 port (optional)
    • 3 audio jacks: line-out, line-in and mic-in
        /:
    • 2 connectors for 4 additional external USB 2.0/1.1 ports
    • 1 connector for 1 external IEEE 1394 port (optional)
    • 1 connector for 1 external serial port
    • 1 front audio connector for external line-out and mic-in jacks
    • 1 CD-in internal audio connector
    • 1 S/PDIF-in/out connector
    • 1 IrDA connector
    • 2 Serial ATA connectors
    • 2 IDE connectors
    • 1 floppy connector
    • 2 ATX power supply connectors
    • 1 Wake-On-LAN connector
    • 2 fan connectors
        :
    • 1 AGP slot
    • 3 PCI slots
    • 1 CNR slot (optional)
       -, :
    • 4 layers, microATX form factor
    • 24.5cm (9.65") x 23cm (9.06")

    28 2004 .

    Новости

    Раздел новостей >
    Попробовать новый дизайн       Подробнее

    Copyright © 1997—2024.

    О сайте

    Адрес для связи info@ixbt.com

    Наши проекты
    Полезные ссылки
    Связь с администрацией

    Нашли ошибку? Выделите текст и нажмите Shift+Enter.

    Copyright © 1997-2024
